Product Name: |
288 G652D Loose Tube Layer Stranding Air Blown Micro Cable GCYFT4-288 Mikrokabel |
Fiber Count: |
288F |
Fiber Type: |
G652D |
Diameter (±0.2mm): |
9.4mm±0.2mm |
Outer Sheath: |
PA12 |
Tensile Strength: |
1000N |
Microduct Size: |
14/12mm |
Blowing Distance: |
1500m |
Product Name: |
288 G652D Loose Tube Layer Stranding Air Blown Micro Cable GCYFT4-288 Mikrokabel |
Fiber Count: |
288F |
Fiber Type: |
G652D |
Diameter (±0.2mm): |
9.4mm±0.2mm |
Outer Sheath: |
PA12 |
Tensile Strength: |
1000N |
Microduct Size: |
14/12mm |
Blowing Distance: |
1500m |
288 G652D Loose Tube Layer Stranding Air Blown Micro Cable GCYFT4-288 Mikrokabel
Description
Using Huiyuan Air-Blown Fiber technology, we offer a cost-saving and flexible installation of fiber optic cables. Our air-blown fiber optic services increase your competitive edge, and it is very compatible with most network infrastructure designs. With this equipment, we can install the exact count of the exact fiber cable in a smaller number of days. Thus, saving unnecessary manpower while delivering highly scalable cabling solutions.
Technical specification
| P/N | GCYF4-288 | |
| Fibre count | 288 | |
| Loose tube count | 9+15 | |
| Filler count | 0 | |
| Fiber per tube | 12 | |
| Water blocking method | FRP or PE Lining | Water Blocking yarn |
| Cable Core | Water Blocking Kevlar | |
| Thickness of nylon jacket | Nominal: 0.45mm, Average: 0.40mm, Minimum: 0.35mm | |
| Nominal Diameter | 9.4±0.2mm | |
| Weight | 78 kg/km | |
| Max. Tensile Strength | 1000N | |
| Max. Crushing Resistance | 800N/100mm | |
Fiber specification
| Single mode fiber | 9/125um OS2 G.652D |
| Chromatic dispersion | |
| @1285-1330nm ps/(nm.km) | ≤3.5 |
| @1550nm ps/(nm.km) | ≤1.8 |
| Attenuation - cable | |
| Max. @1310nm (dB/km) | 0.35 |
| Max. @1550nm (dB/km) | 0.24 |
| Max. @1625nm (dB/km) | 0.26 |
| Cable cut-off wavelength (λcc) (um) | ≤1260 |
| Mode field diameter | |
| @1310nm (um) | 9.2±0.4 |
| @1550nm (um) | 10.4±0.5 |
| Cladding diameter | 125.0±0.7 |
| Clad non-circularity | ≤1% |
| Coating diamter (um) | 235-245 |
| Core/clad concentricity error (um) | ≤0.5 |
| Coating/clad concentricity error (um) | ≤12 |

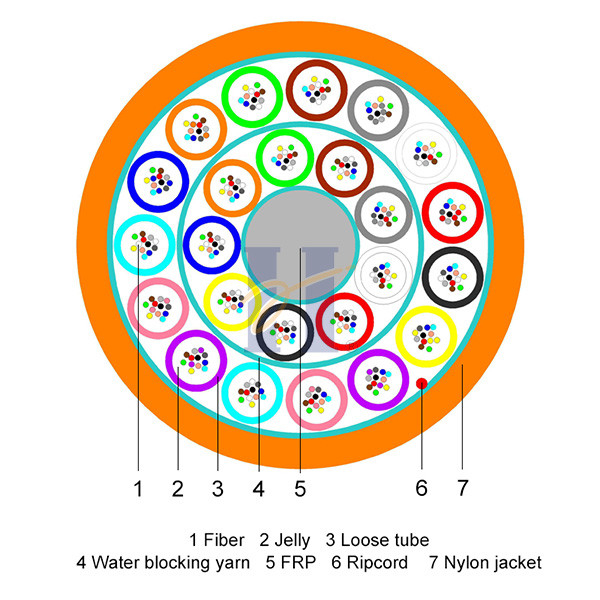

Cable structure:
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Environment performance
| Item | Testing Method | Testing Results |
| Temperature cycling | IEC 60794-1-22-F1 | Allowable additional attenuation (1550nm) G.652D/G657 Δa≤0.05 dB/km, Δa reversible |
| Water penetration | IEC 60794-1-22-F5B | Water column: 1m & 3m cable, Period: 24 hours No water leak through the open end of cable |
| Filling compound flow | IEC 60794-1-22-E14 | 70℃, Period: 24 hours No compound flow from the cable |
Fiber color
| 1 Blue |
| 2 Orange |
| 3 Green |
| 4 Brown |
| 5 Grey |
| 6 White |
| 7 Red |
| 8 Black |
| 9 Yellow |
| 10 Violet |
| 11 Pink |
| 12 Aqua |
Loose tube color
| 1 Blue | 13 Blue |
| 2 Orange | 14 Orange |
| 3 Green | 15 Green |
| 4 Brown | 16 Brown |
| 5 Grey | 17 Grey |
| 6 White | 18 White |
| 7 Red | 19 Red |
| 8 Black | 20 Black |
| 9 Yellow | 21 Yellow |
| 10 Violet | 22 Violet |
| 11 Pink | 23 Pink |
| 12 Aqua | 24 Aqua |
Cable text print: (Support customized text)
HYOC GYCF4 288 G652D [Drum No.] [Month-Year] [Meter marking]
Packing details
| Fibre Count | Drum Length (m) |
Drum Size Φ×W (mm) |
Packing Size L*W*H (mm) |
Gross weight (kg) |
| 288 Fibers | 2000 | Φ1100×1150 | 1150×1150×1310 | 270 |
| 4000 | Φ1200×1150 | 1250×1150×1410 | 450 |
