Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: GYCFT4-72G652D
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
72F G.652.D Fiber Optic Cable Internet Air Blown Micro Cable Stranded Loose Tubes |
Fiber Count: |
72F |
Fiber Type: |
G.652.D |
Diameter (±0.2mm): |
5.3mm±0.2mm |
Outer Jacket: |
Polyamide |
Application: |
FTTH |
Microduct To Blow: |
HDPE 10/8mm |
Blowing Distance: |
1800 Meter |
Product Name: |
72F G.652.D Fiber Optic Cable Internet Air Blown Micro Cable Stranded Loose Tubes |
Fiber Count: |
72F |
Fiber Type: |
G.652.D |
Diameter (±0.2mm): |
5.3mm±0.2mm |
Outer Jacket: |
Polyamide |
Application: |
FTTH |
Microduct To Blow: |
HDPE 10/8mm |
Blowing Distance: |
1800 Meter |
72F G.652.D Fiber Optic Cable Internet Air Blown Micro Cable Stranded Loose Tubes
Description
Huiyuan's 72f air blown micro cable is for FTTH application with low weight, small diameter and long blowing performance.
Metal-free cable, hence no ground loop problems
PE jacket, UV and microbe resistant
Dry cable core with swellable elements
Water blocking according to IEC 60794-1-2-F5
Can be directly buried and installed in ducts
Thin and robust cable
Preassembled length available
TIA/EIA-598 color standard for fibers and tubes
Technical specification
| P/N | GYCFT4-72 | |
| Fibre count | 72 | |
| Loose tube count | 6 | |
| Filler count | 0 | |
| Fiber per tube | 12 | |
| Nominal Diameter | 5.3±0.1 mm | |
| Weight | 27 kg/km | |
| Min. Bending radius - Static | 12*cable diameter | |
| Min. Bending radius - Dynamic | 20*cable diameter | |
| Cable Fibre Attenuation (G.652D) | 0.35dB/km @1310nm, 0.22dB/km @1550nm | |
| Temperature | Storage -40 to 70℃, Installation -10 to +40℃, Operation -40 to +70℃ | |
| Cable life | 30 years | |
Fiber specification
| Single mode fiber | 9/125um OS2 G.652D |
| Chromatic dispersion | |
| @1285-1330nm ps/(nm.km) | ≤3.5 |
| @1550nm ps/(nm.km) | ≤1.8 |
| Attenuation - cable | |
| Max. @1310nm (dB/km) | 0.35 |
| Max. @1550nm (dB/km) | 0.24 |
| Max. @1625nm (dB/km) | 0.26 |
| Cable cut-off wavelength (λcc) (um) | ≤1260 |
| Mode field diameter | |
| @1310nm (um) | 9.2±0.4 |
| @1550nm (um) | 10.4±0.5 |
| Cladding diameter | 125.0±0.7 |
| Clad non-circularity | ≤1% |
| Coating diamter (um) | 235-245 |
| Core/clad concentricity error (um) | ≤0.5 |
| Coating/clad concentricity error (um) | ≤12 |

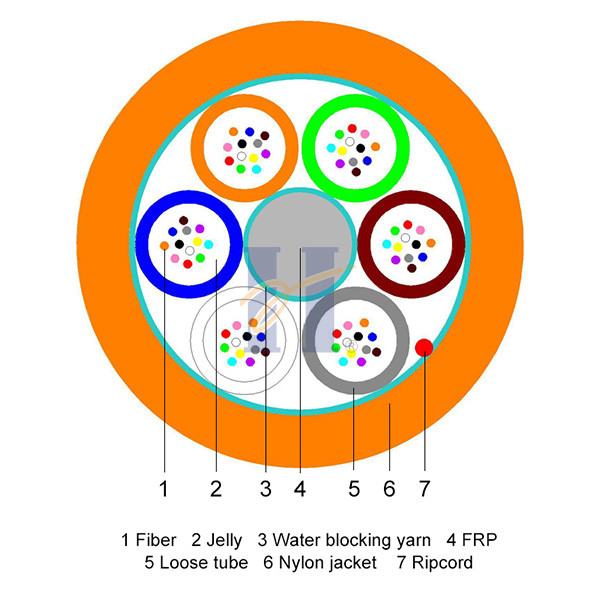

Cable structure:
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Fiber color
| Fiber 1: Blue |
| Fiber 2: Orange |
| Fiber 3: Green |
| Fiber 4: Brown |
| Fiber 5: Slate |
| Fiber 6: White |
| Fiber 7: Red |
| Fiber 8: Black |
| Fiber 9: Yellow |
| Fiber 10: Violet |
| Fiber 11: Rose |
| Fiber 12: Aqua |
Loose tube color
| Loose tube 1: Blue |
| Loose tube 2: Orange |
| Loose tube 3: Green |
| Loose tube 4: Brown |
| Loose tube 5: Slate |
| Loose tube 6: White |
Cable text print: (Support customized text)
HYOC GCYFT4 72 G652D [Drum No.] [Month-Year] [Meter marking]
Packing details
| Fibre Count | Drum Length | Drum Size | Packing Size | Gross weight |
| (m) | Φ×W (mm) | L×W ×H (mm) | (kg) | |
| 12 to 72 Fibers | 2000 | Φ600×450 | 640×450×805 | 95 |
| 4000 | Φ700×570 | 740×570×905 | 150 | |
| 6000 | Φ800×570 | 840×570×1005 | 210 |
