Product Name: |
216 G652D Blown In Fiber Optic Cable Air Blown Micro Cable Gel-Filled Stranding Cable |
Fiber Count: |
216F |
Fiber Type: |
G652D |
Diameter (±0.2mm): |
7.8mm±0.2mm |
Outer Sheath: |
Nylon |
Tensile Strength: |
500N |
Microduct Size: |
14/12mm |
Blowing Distance: |
1500 Meter |
Product Name: |
216 G652D Blown In Fiber Optic Cable Air Blown Micro Cable Gel-Filled Stranding Cable |
Fiber Count: |
216F |
Fiber Type: |
G652D |
Diameter (±0.2mm): |
7.8mm±0.2mm |
Outer Sheath: |
Nylon |
Tensile Strength: |
500N |
Microduct Size: |
14/12mm |
Blowing Distance: |
1500 Meter |
216 G652D Blown In Fiber Optic Cable Air Blown Micro Cable Gel-Filled Stranding Cable
Description
Air Blown Micro Cable PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors. The SZ-stranded method for loose tube sand one ripcord ensure a quick and easy mid-span access. Dielectric central strength member requires no bonding or grounding. Internal and external water blocking yarn sand water blocking aramid yarn used as binder, providing protection against water penetration and adding tensile strength.
Technical specification
| P/N | MICRO-192 | |
| Fibre count | 192 | |
| Loose tube count | 6+10 | |
| Filler count | 0+2 | |
| Fiber per tube | 12 | |
| Nominal Diameter | 7.8±0.2 mm | |
| Weight | 55 kg/km | |
| Min. Bending radius - Static | 12*cable diameter | |
| Min. Bending radius - Dynamic | 20*cable diameter | |
| Cable Fibre Attenuation (G.652D) | 0.35dB/km @1310nm, 0.22dB/km @1550nm | |
| Temperature | Storage -40 to 70℃, Installation -10 to +40℃, Operation -40 to +70℃ | |
| Cable life | 30 years | |
Fiber specification
| Characteristics | Specified Values | |
| Mode field diameter | at 1310nm | 9.2±0.4µm |
| at 1550nm | 10.4 ± 0.6mm | |
| Attenuation coefficient | at 1310nm | ≤0.40dB/km |
| at 1550nm | ≤0.30dB/km | |
| Zero dispersion wavelength ( λ0) | 1300 to 1324nm | |
| Max zero dispersion slope (S0max) | ≤0.092ps/(nm2·km) | |
| Cut-off wavelength (λcc) | ≤1260nm | |
| Dispersion coefficient | 1285～1330nm | ≤3.5ps/(nm·km) |
| 1550nm | ≤18ps/(nm·km) | |
| Effective group index of refraction (Neff) | at 1310nm | 1.466 |
| at 1550nm | 1.467 | |
| Curling | ≥4m | |
| Proof stress | ≥0.69GPa | |
| Coating strip force | Average value | 1.0-5.0N |
| Peak value | 1.3-8.9N | |
| Macro bending loss | Ф60mm, 100 circles, at 1550nm | ≤0.05dB |
| Ф32mm, 1 circles, at 1550nm | ≤0.05dB | |

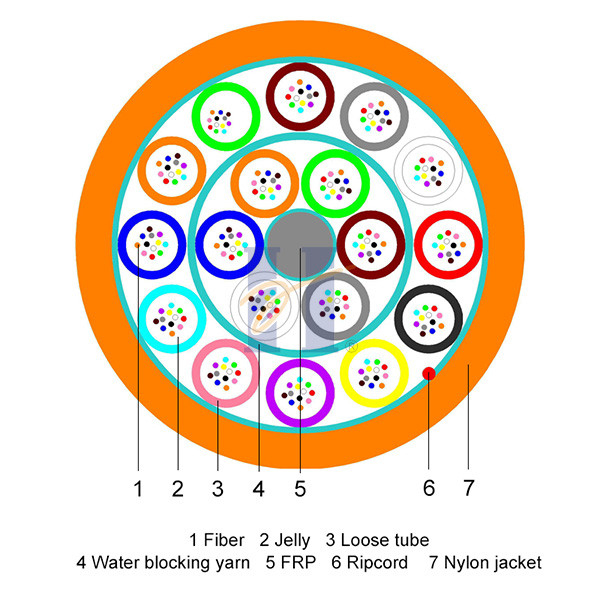

Cable structure:
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Blowing performance
| Blowing Tool | Typical blowing length | ||
| PLUMETTAZ:PR-140, MiniJet-400 etc. AIR Pressure : 15 Bar |
Fiber Count | Duct type 12.0/10.0mm | Duct type 14.0/12.0mm |
| 192 to 216Fibers | 1500m | / | |
| 288 fibers | / | 1500m | |
Fiber color
| Fibre 1: Blue |
| Fibre 2: Orange |
| Fibre 3: Green |
| Fibre 4: Brown |
| Fibre 5: Grey |
| Fibre 6: White |
| Fibre 7: Red |
| Fibre 8: Black |
| Fibre 9: Yellow |
| Fibre 10: Violet |
| Fibre 11: Pink |
| Fibre 12: Aqua |
Loose tube color
| Inner layer | Outer layer |
| Loose tube 1: Blue | Loose tube 7: Blue |
| Loose tube 2: Orange | Loose tube 8: Orange |
| Loose tube 3: Green | Loose tube 9: Green |
| Loose tube 4: Brown | Loose tube 10: Brown |
| Loose tube 5: Grey | Loose tube 11: Grey |
| Loose tube 6: White | Loose tube 12: White |
| Loose tube 13: Red | |
| Loose tube 14: Black | |
| Loose tube 15: Yellow | |
| Loose tube 16: Violet | |
| Loose tube 17: Pink | |
| Loose tube 18: Aqua |
Cable text print: (Support customized text)
HYOC GYCF4 216 G652D [Drum No.] [Month-Year] [Meter marking]
Packing details
| Fibre Count | Drum Length (m) |
Drum Size Φ×W (mm) |
Packing Size L*W*H (mm) |
Gross weight (kg) |
| 216 Fibers | 2000 | Φ800×570 | 840×570×1005 | 190 |
| 4000 | Φ900×760 | 940×760×1105 | 290 | |
| 6000 | Φ1000×760 | 1050×760×1315 | 420 |
