Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: GCYFT4-48G652D
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
48F G652D Layer Stranding Air Blown Micro Cable Outdoor Installing Fiber Optic Cable |
Fiber Count: |
48Fibre |
Fiber Type: |
G652D |
Diameter (±0.2mm): |
5.3mm |
Outer Sheath: |
Polyamide |
Application: |
FTTx |
Installation: |
Microduct Blowing |
Blown Distance: |
1500m |
Product Name: |
48F G652D Layer Stranding Air Blown Micro Cable Outdoor Installing Fiber Optic Cable |
Fiber Count: |
48Fibre |
Fiber Type: |
G652D |
Diameter (±0.2mm): |
5.3mm |
Outer Sheath: |
Polyamide |
Application: |
FTTx |
Installation: |
Microduct Blowing |
Blown Distance: |
1500m |
48F G652D Layer Stranding Air Blown Micro Cable Outdoor Installing Fiber Optic Cable
Description
Huiyuan's family of cost-effective fiber-optic micro cables is designed for installations air blown into microducts. Microduct technology provides a cost-effective, craft-friendly way to upgrade your network, which can grow on demand by deploying fiber as needed. This technology is also common in congested areas, such as metro applications, where duct space is very limited. These cable designs are compact and lightweight, and contain high fiber density to maximize the fiber count available in a small cable diameter.
The stranded loose tube design is available in counts up to 288 with outer diameters varying from 5.3mm to 9.4mm. Stranded loose tube cable provides easy, mid-span access.
Technical specification:
| P/N | MICRO-48 | |
| Fibre count | 48 | |
| Loose tube count | 4 | |
| Filler count | 2 | |
| Fiber per tube | 12 | |
| Nominal Diameter | 5.3±0.1 mm | |
| Weight | 27 kg/km | |
| Min. Bending radius - Static | 12*cable diameter | |
| Min. Bending radius - Dynamic | 20*cable diameter | |
| Cable Fibre Attenuation | 0.35dB/km @1310nm, 0.22dB/km @1550nm | |
| Temperature | Storage -40 to 70℃, Installation -10 to +40℃, Operation -40 to +70℃ | |
| Cable life | 30 years | |
Fiber specification:
| Characteristics | Specified Values | |
| Mode field diameter | at 1310nm | 9.2±0.4µm |
| at 1550nm | 10.4 ± 0.6mm | |
| Attenuation coefficient | at 1310nm | ≤0.40dB/km |
| at 1550nm | ≤0.30dB/km | |
| Cladding diameter | 125.0±1.0µm | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter | 245.0±10.0µm | |
| Coating-cladding concentricity error | ≤12.0µm | |
| Coating non-circularity | ≤6.0% | |
| Core-cladding concentricity error | ≤0.8µm | |
| Curling | ≥4m | |
| Proof stress | ≥0.69GPa | |

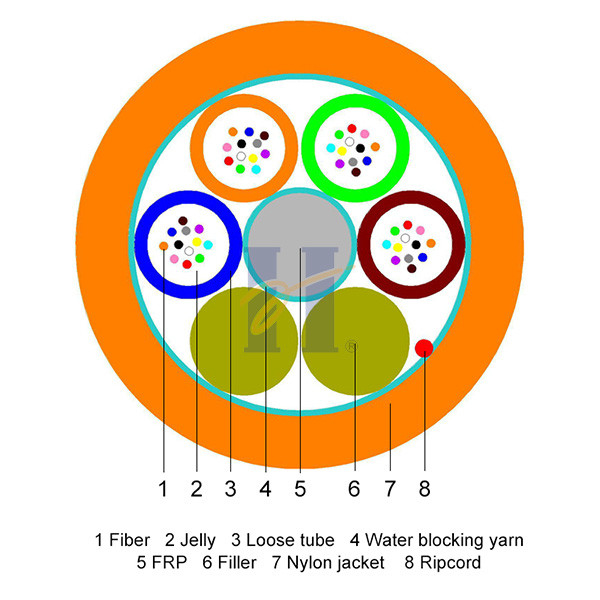

Cable structure:
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Fiber color
| Fiber No.1: Red |
| Fiber No.2: Green |
| Fiber No.3: Blue |
| Fiber No.4: Yellow |
| Fiber No.5: White |
| Fiber No.6: Grey |
| Fiber No.7: Brown |
| Fiber No.8: Violet |
| Fiber No.9: Aqua |
| Fiber No.10: Black |
| Fiber No.11: Orange |
| Fiber No.12: Pink |
Loose tube color
| Loose tube No.1: Red |
| Loose tube No.2: Green |
| Loose tube No.3: Blue |
| Loose tube No.4: Yellow |
Cable text print: (Support customized text)
HYOC GCYFT4 48 G652D [Drum No.] [Month-Year] [Meter marking]
Packing details
| Fibre Count | Drum Length | Drum Size | Packing Size | Gross weight |
| (m) | Φ×W (mm) | L×W ×H (mm) | (kg) | |
| 48F | 2000 | Φ600×450 | 640×450×805 | 95 |
| 4000 | Φ700×570 | 740×570×905 | 150 | |
| 6000 | Φ800×570 | 840×570×1005 | 210 |
