Product Name: |
192 G657A1 Micro Fiber Optic Cable Air Blowing Air Blown Micro Cable GCYF4-192 Kabel |
Fiber Count: |
192 Fibre |
Fiber Type: |
G657A1 |
Diameter (±0.3mm): |
7.8mm |
Cable Weight: |
52kg/km |
Jacket Color: |
Orange |
Application: |
FTTH |
Blowing Distance: |
1500m |
Product Name: |
192 G657A1 Micro Fiber Optic Cable Air Blowing Air Blown Micro Cable GCYF4-192 Kabel |
Fiber Count: |
192 Fibre |
Fiber Type: |
G657A1 |
Diameter (±0.3mm): |
7.8mm |
Cable Weight: |
52kg/km |
Jacket Color: |
Orange |
Application: |
FTTH |
Blowing Distance: |
1500m |
192 G657A1 Micro Fiber Optic Cable Air Blowing Air Blown Micro Cable GCYF4-192 Kabel
Description
Air Blown Micro Cable Gel-Filled all-dielectric design with a small outer diameter, makes it ideal for microduct applications, lowering deployment cost, allowing the usage of the air blown fiber method for installation. Designed for microducts with an inner diameter ranging from 8 mm to 16 mm, according to the fiber count.
Loose tubes are made of PBT which provide great mechanical properties under a wide range of conditions and are filled with water blocking gel.
Technical specification
| P/N | MICRO-192 | |
| Fibre count | 192 | |
| Loose tube count | 6+10 | |
| Filler count | 0+2 | |
| Fiber per tube | 12 | |
| Nominal Diameter | 7.8±0.2 mm | |
| Weight | 55 kg/km | |
| Min. Bending radius - Static | 12*cable diameter | |
| Min. Bending radius - Dynamic | 20*cable diameter | |
| Cable Fibre Attenuation (G.652D) | 0.35dB/km @1310nm, 0.22dB/km @1550nm | |
| Temperature | Storage -40 to 70℃, Installation -10 to +40℃, Operation -40 to +70℃ | |
| Cable life | 30 years | |
Fiber specification
| Characteristics | Values |
| Optical Characteristics | |
| Mode field diameter | 8.6±0.6µm @1310nm |
| 9.8±0.8mm @1550nm | |
| Attenuation coefficient | ≤0.40dB/km @1310nm |
| ≤0.30dB/km @1550nm | |
| Zero dispersion wavelength ( λ0) | 1300nm to 1324nm |
| Max zero dispersion slope (S0max) | ≤0.092ps/(nm2·km) |
| Cut-off wavelength (λcc) | ≤1260nm |
| Effective group index of refraction (Neff) | 1.466 @1310nm |
| 1.467 @1550nm | |
| Mechanical characteristic | |
| Curling | ≥4m |
| Proof stress | ≥0.69GPa |
| Coating strip force | 1.0-5.0N average value |
| 1.3-8.9N peak value | |
| Macro bending loss | ≤0.75dB @1550nm, Ф20mm, 1 circles |
| ≤1.5dB @1625nm, Ф20mm, 1 circles | |
| ≤0.25dB @1550nm, Ф30mm, 10 circles | |
| ≤1.0dB @1625nm, Ф30mm, 10 circles | |

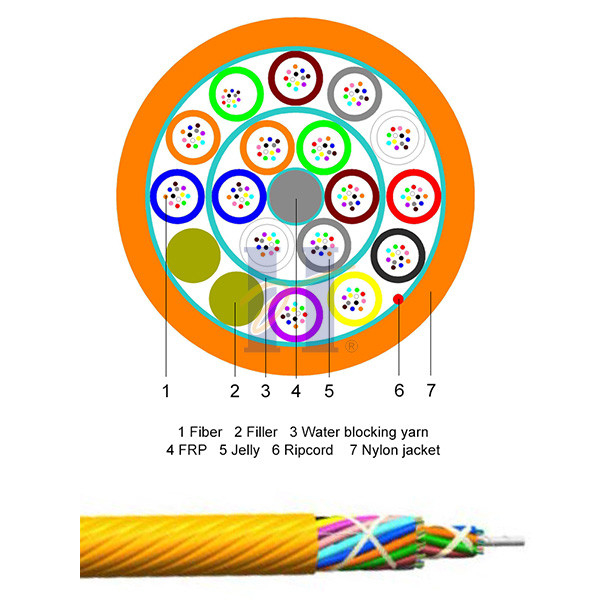

Cable structure:
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Fiber color
| Fiber #1: Red |
| Fiber #2: Green |
| Fiber #3: Blue |
| Fiber #4: Yellow |
| Fiber #5: White |
| Fiber #6: Grey |
| Fiber #7: Brown |
| Fiber #8: Violet |
| Fiber #9: Aqua |
| Fiber #10: Black |
| Fiber #11: Orange |
| Fiber #12: Pink |
Loose tube color
| Loose tube #1: Red | Loose tube #9: Aqua |
| Loose tube #2: Green | Loose tube #10: Black |
| Loose tube #3: Blue | Loose tube #11: Orange |
| Loose tube #4: Yellow | Loose tube #12: Pink |
| Loose tube #5: White | Loose tube #13: Red |
| Loose tube #6: Grey | Loose tube #14: Green |
| Loose tube #7: Brown | Loose tube #15: Blue |
| Loose tube #8: Violet | Loose tube #16: Yellow |
Cable text print: (Support customized text)
HYOC GCYFT4 192 G657A1 [Drum No.] [Month-Year] [Meter marking]
Order information
| Fiber count | Fiber class | P/N |
| 192 | G657A1 | MICRO 16X12F G657A1 PA 7.8MM |
| 192 | G652D | MICRO 16X12F G652D PA 7.8MM |
| 192 | OM1 | MICRO 16X12F OM1 PA 7.8MM |
| 192 | OM2 | MICRO 16X12F OM2 PA 7.8MM |
| 192 | OM3 | MICRO 16X12F OM3 PA 7.8MM |
| 192 | OM4 | MICRO 16X12F OM4 PA 7.8MM |
