Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: GYCFT4-60G652D
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
60F G.652.D Air Blown Fiber Machine Air Blown Micro Cable GYCFT4 A-D(ZN)4Y 9/125 |
Fiber Count: |
60F |
Fiber Type: |
G.652.D |
Diameter (±0.2mm): |
5.3mm±0.2mm |
Outer Jacket: |
Polyamide |
Application: |
Fiber To The Home |
Microduct To Blow: |
10.00/8.00mm |
Blowing Distance: |
1500 Meter |
Product Name: |
60F G.652.D Air Blown Fiber Machine Air Blown Micro Cable GYCFT4 A-D(ZN)4Y 9/125 |
Fiber Count: |
60F |
Fiber Type: |
G.652.D |
Diameter (±0.2mm): |
5.3mm±0.2mm |
Outer Jacket: |
Polyamide |
Application: |
Fiber To The Home |
Microduct To Blow: |
10.00/8.00mm |
Blowing Distance: |
1500 Meter |
60F G.652.D Air Blown Fiber Machine Air Blown Micro Cable GYCFT4 A-D(ZN)4Y 9/125
Description
The 60FO (5x12) Air Blown Fiber Microduct Loose Tube Fiber Optic Cable SM G.652.D from Huiyuan is a Air Blown Fiber Microduct cable with 60 fibers within 5 loose tubes. This distribution cable for optical networks with a reduced od, has a loose tube structure with PBT tubes filled with a thixotropic compound and a polyethylene sheath with incorporated non-metallic reinforcements and water-blocking yarns, allowing high blowing distance due to the excellent friction properties of the outer sheath and avoiding water propagation. The optical fibers comply with ITU-T recommendations G.652.D.
Technical specification
| P/N | MICRO-60 | |
| Fibre count | 60 | |
| Loose tube count | 5 | |
| Filler count | 1 | |
| Fiber per tube | 12 | |
| Water blocking method | FRP or PE Lining | Water Blocking yarn |
| Cable Core | Water Blocking Kevlar | |
| Thickness of nylon jacket | Nominal: 0.45mm, Average: 0.40mm, Minimum: 0.35mm | |
| Nominal Diameter | 5.3±0.1 mm | |
| Weight | 27 kg/km | |
| Max. Tensile Strength | 500N | |
| Max. Crushing Resistance | 800N/100mm | |
Fiber specification
| Characteristics | Values |
| Mode field diameter | 9.2±0.4µm @1310nm |
| 10.4 ± 0.6mm @1550nm | |
| Attenuation coefficient | ≤0.40dB/km @1310nm |
| ≤0.30dB/km @1550nm | |
| Cladding diameter | 125.0±1.0µm |
| Cladding non-circularity | ≤1.0% |
| Coating diameter | 245.0±10.0µm |
| Coating-cladding concentricity error | ≤12.0µm |
| Coating non-circularity | ≤6.0% |
| Core-cladding concentricity error | ≤0.8µm |
| Curling | ≥4m |
| Proof stress | ≥0.69GPa |

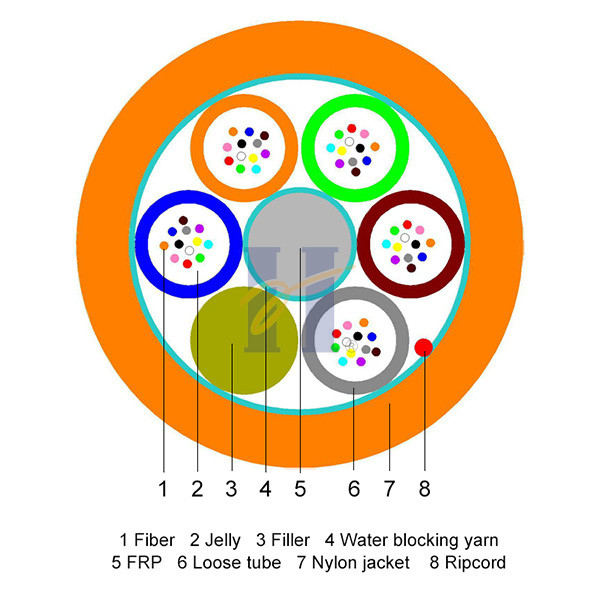

Cable structure:
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Fiber color
| Fibre No.1 = Blue |
| Fibre No.2 = Orange |
| Fibre No.3 = Green |
| Fibre No.4 = Brown |
| Fibre No.5 = Grey |
| Fibre No.6 = White |
| Fibre No.7 = Red |
| Fibre No.8 = Black |
| Fibre No.9 = Yellow |
| Fibre No.10 = Violet |
| Fibre No.11 = Pink |
| Fibre No.12 = Aqua |
Loose tube color
| Loose tube No.1 = Blue |
| Loose tube No.2 = Orange |
| Loose tube No.3 = Green |
| Loose tube No.4 = Brown |
| Loose tube No.5 = Grey |
Cable text print: (Support customized text)
HYOC GCYFT4 60 G652D [Drum No.] [Month-Year] [Meter marking]
Order information
| Fiber count | Fiber class | P/N |
| 60 | G657A1 | MICRO 5X12F G657A1 PA 5.3MM |
| 60 | G652D | MICRO 5X12F G652D PA 5.3MM |
| 60 | OM1 | MICRO 5X12F OM1 PA 5.3MM |
| 60 | OM2 | MICRO 5X12F OM2 PA 5.3MM |
| 60 | OM3 | MICRO 5X12F OM3 PA 5.3MM |
| 60 | OM4 | MICRO 5X12F OM4 PA 5.3MM |
