Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: ADSS-72B1.3
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
72 Core Aerial ADSS Fiber Cable 150m Span Single Mode Outdoor Fiber Optic Cable |
Fiber Count: |
72F |
Fiber Type: |
Singlemode |
Span: |
150m |
Jelly: |
Gel Filled Or Gel Free |
Jacket Material: |
HDPE |
Strength Member: |
FRP & Aramid Yarn |
Application: |
Overhead Line |
Product Name: |
72 Core Aerial ADSS Fiber Cable 150m Span Single Mode Outdoor Fiber Optic Cable |
Fiber Count: |
72F |
Fiber Type: |
Singlemode |
Span: |
150m |
Jelly: |
Gel Filled Or Gel Free |
Jacket Material: |
HDPE |
Strength Member: |
FRP & Aramid Yarn |
Application: |
Overhead Line |
72 Core Aerial ADSS Fiber Cable 150m Span Single Mode Outdoor Fiber Optic Cable
Description
All-Dielectric Self-Supporting (ADSS) fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures. From pole-to-build to town-town installations, which includes fiber optic cables, suspension, dead end and termination enclosures, offers a comprehensive transmission circuit infrastructure with proven, high-reliability performance. As the ADSS cabling concept implies, a separate messenger support wire hanging system is not required, greatly reducing installation time and improving upfront and maintenance labor costs. It includes fiber counts up to 144 optical fibers and any type of combination of single-mode and laser-optimized multimode fibers with the cable. Pole-to-Pole span lengths range from 50 feet to over 1000 feet. Custom ADSS design options allow span lengths of over one mile (5,280 feet).
Technical specification
|
Fiber quantity
|
/
|
2~30
|
32~60
|
62~72
|
74~96
|
98~120
|
122~144
|
|
|
Structure
|
/
|
1+5
|
1+5
|
1+6
|
1+8
|
1+10
|
1+12
|
|
|
Optical fiber type
|
/
|
G.652D
|
||||||
|
Central strength member
|
Material
|
mm
|
FRP
|
|||||
|
Diameter
|
1.5
|
1.5
|
2.1
|
2.1
|
2.1
|
2.1
|
||
| (average value) | ||||||||
|
Cushion layer
|
Material
|
mm
|
MDPE
|
|||||
|
Thickness
|
|
|
|
3.4
|
4.7
|
6.2
|
||
| (average value) | ||||||||
|
Loose tube
|
Material
|
/
|
PBT
|
|||||
|
Diameter
|
mm
|
1.8
|
2.1
|
2.1
|
2.1
|
2.1
|
2.1
|
|
| (average value) | ||||||||
|
Thickness
|
0.32
|
0.35
|
0.35
|
0.35
|
0.35
|
0.35
|
||
| (average value) | ||||||||
|
Max.fiber qty
|
6
|
12
|
12
|
12
|
12
|
12
|
||
|
Loose tube color
|
Full color
|
|||||||
|
Fiber excess length
|
%
|
0.7~0.8
|
||||||
|
Water-resistant
|
Material
|
/
|
Jelly
|
|||||
|
Inner sheath
|
Material
|
mm
|
MDPE
|
|||||
|
Thickness
|
Standard value:1.0/ min:0.8/ average value:0.9
|
|||||||
| (average value) | ||||||||
|
Non-metallic
|
Material
|
/
|
Glass yarn
|
|||||
|
component
|
||||||||
|
Outer sheath
|
Material
|
mm
|
MDPE
|
|||||
|
Thickness
|
Standard value:1.8/ min:1.5/ average value:1.6
|
|||||||
| (average value) | ||||||||
|
Cable diameter (average value)
|
mm
|
11
|
11.6
|
12.2
|
13.5
|
14.8
|
16.3
|
|
|
Cable weight (about)
|
kg/km
|
105
|
115
|
130
|
160
|
195
|
235
|
|
|
Max.Attenuation coefficien
|
1310mm
|
dB/km
|
0.35
|
|||||
|
1550mm
|
0.21
|
|||||||
|
Pull tension strength
|
Long time
|
N
|
1000
|
|||||
|
Short time
|
3000
|
|||||||
|
Crush pressure
|
Long time
|
N/
|
1000
|
|||||
| 100
|
||||||||
|
Short time
|
mm |
3000
|
||||||
|
Bending radius
|
Static
|
mm
|
12.5O.D.
|
|||||
|
Dynamic
|
25 O.D.
|
|||||||
|
Temperature
|
Installing
|
°C
|
-20~+60
|
|||||
|
Storage & shipping
|
-40~+70
|
|||||||
|
Working
|
-40~+70
|
|||||||

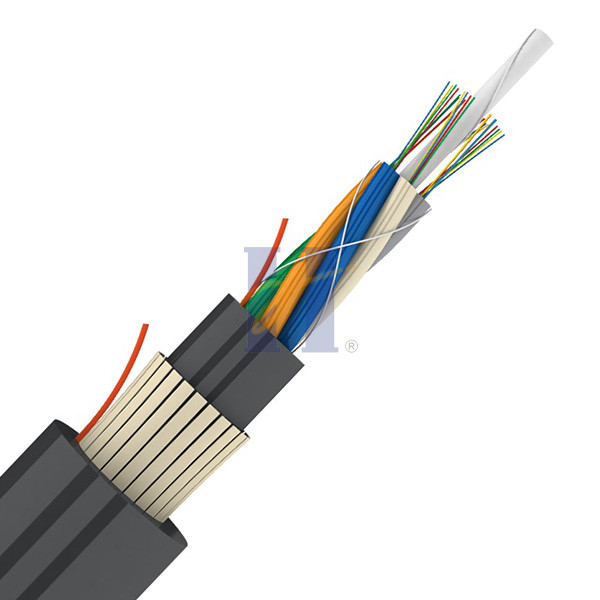

Cable structure:
Features
Can be installed without shutting off the power
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
Large span lengths
Good performance of tensile strength and temperature
Arc-erosion-resistant AT jecket
The design life span is 30 years
Standard drum length
2000m/drum, 4000m/drum
Fiber specification
|
|
G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
FAQ
Q1.Are you tradning company or manufacturer?
We are the manufacturer with 30 years' experience, we are specialized in research,development and production of fiber optic cable. Our factory is in Chengdu city,welcome to visit us!
Q2.About the quality?
We will tested all fibers when finished production before delivery.
After price confirmation, you can require for free samples to check our quality.
Q3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
Q4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
Q5.Can you supply customized products and logo?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
