Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: ADSS-60B1.3
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
60 Core All Dielectric Self-Supporting ADSS Fiber Cable Outdoor Overhead Optical Fiber Cable |
Fiber Count: |
60 Core |
Fiber Type: |
G652D |
Span: |
150m |
Jacket: |
PE |
Structure: |
Stranded Loose Tube |
Operating Temperature: |
-40 ~ +60 C |
Certification: |
ISO 9001 |
Product Name: |
60 Core All Dielectric Self-Supporting ADSS Fiber Cable Outdoor Overhead Optical Fiber Cable |
Fiber Count: |
60 Core |
Fiber Type: |
G652D |
Span: |
150m |
Jacket: |
PE |
Structure: |
Stranded Loose Tube |
Operating Temperature: |
-40 ~ +60 C |
Certification: |
ISO 9001 |
60 Core All Dielectric Self-Supporting ADSS Fiber Cable Outdoor Overhead Optical Fiber Cable
Description
ADSS Cables are designed for outdoor installation along power lines,railway or telecommunication cables on poles or lattice towers. The cable is self-supporting and require no messenger or lashing wire for fixing. There are no metallic components used in the cable and has a track-resistant sheath material for installation on medium and high voltage lines.
Technical specification
| Cable type | ADSS-24B1 | ADSS-48B1 | |||||
| element | -- | 6 | 6 | ||||
| Central Strength Member | Material | Fiberglass Reinforce with Plastic (FRP) | |||||
| Loose Tube | Material | Polybutelene Terephthalate (PBT) | |||||
| Diameter | Nom.2.1 mm | Nom.2.3 mm | |||||
| -- | 4 Fibers per Tube | 8 Fibers per Tube | |||||
| Filling compound in loose tube | Material | Thixotropic jelly | |||||
| Inner Sheath | Material | Black MDPE | |||||
| Thickness | Nom.0.9 mm | ||||||
| Strength Member | Material | Aramid yarns | |||||
| Outer Sheath | Material | HDPE | |||||
| Thickness | Nom.1.7 mm | ||||||
| Span | m | 100 | 150 | 250 | 100 | 150 | 250 |
| Overall Diameter | mm | 12 | 12 | 12.1 | 12.6 | 12.7 | 12.8 |
| Weight | kg/km | 98 | 98 | 100 | 110 | 111 | 114 |
| Max.Tensile strength | N | 2000 | 2200 | 3200 | 2250 | 2450 | 3550 |

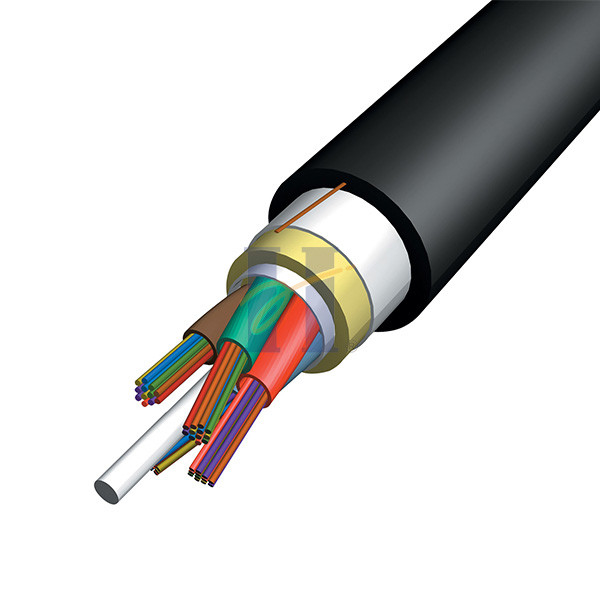

Cable structure:
Features
Suitable for use on distribution and high voltage transmission lines
Requires no messenger wire -- fully self-supporting
Single pass installation -- no messenger, no lashing wire -- faster and lower cost
Cable is water-blocked using dry core technology, therefore no messy flooding compounds
Design details for span lengths up to 1500ft (457m) and fiber counts up to 432
Custom designs available for larger span lengths or other fiber counts
Full line of attachment hardware available for a "system" solution
Track-resistant outer jacket available for installations on high voltage lines where space potentials reach up to 25kV
Gel-filled buffer tubes are S-Z stranded for easy mid-span access
Standard drum length
2000m/drum, 4000m/drum
Fiber specification
| Category | Description | Specifications | |
| G.652D | |||
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km | ||
| Attenuation discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km | |
| @1525~1575nm | ≤0.05 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324nm | ||
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) | ||
| Dispersion | @1310nm | ≤3.5 ps/nm.km | |
| @1550nm | ≤18 ps/nm.km | ||
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 | ||
| Cable Cutoff Wavelength(λcc) | ≤1260nm | ||
| Effective Group Index of Refraction | @1310nm | 1.4675 | |
| @1550nm | 1.4681 | ||
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB | ||
| Geometric | Mode Field Diameter | @1310nm | 9.2±0.6μm |
| Specifications | @1550nm | 10.4±0.8μm | |
| Cladding Diameter | 125±1μm | ||
| Cladding Non-Circularity | ≤1.0% | ||
| Coating Diameter | 245±7μm | ||
| Coating/Cladding Concentricity Error | ≤8μm | ||
| Core/Cladding Concentricity Error | ≤0.8μm | ||
| Mechanical | Proof Test level | ≥1.0% | |
| Specifications | Fiber Curl Radius | ≥4.0m | |
| Peak Coating Strip Force | 1.3~8.9N | ||
FAQ
1. Are you the real factory?
Yes,we are the real factory with 30 years of optical fiber cable manufacture experience.
2. What is your fiber brand?
Fiber brands including: YOFC & CDSEI (a joint brand of Sumitomo & local company)
3. What is your main products?
ADSS, OPGW, Air blown cable (including EPFU, MINI & Micro cable), Online monitoring system of high voltage power transmission line
4. What is your delivery time?
Normally 7 days
5. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
6. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
7. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
