Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: ADSS-12B1.3
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
12 Core Water Resistant Loose Tube ADSS Fiber Cable All Dielectric Aerial Cable |
Fiber Count: |
12 Core |
Fiber Type: |
G652D |
Jacket: |
HDPE Or AT |
Span: |
150m |
Installation: |
Self-support Aerial |
Strengthen Member: |
All Dielectric FRP |
Application: |
Overhead |
Product Name: |
12 Core Water Resistant Loose Tube ADSS Fiber Cable All Dielectric Aerial Cable |
Fiber Count: |
12 Core |
Fiber Type: |
G652D |
Jacket: |
HDPE Or AT |
Span: |
150m |
Installation: |
Self-support Aerial |
Strengthen Member: |
All Dielectric FRP |
Application: |
Overhead |
12 Core Water Resistant Loose Tube ADSS Fiber Cable All Dielectric Aerial Cable
Description
Huiyuan's Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath.It is especially suitable for installation in aerial for long-distance communication.
Technical specification
|
|
2-96 fibers
|
98-288fibers
|
|
|
Max. Tension (N)
|
Short-term
|
1500
|
3000
|
|
Max. Tension (N)
|
Long-term
|
600
|
1000
|
|
Max. Crushing Resistance (N/100mm2)
|
1000
|
||
|
Temperature range(°C)
|
-40°C-- +70°C
|
||
|
Min. Bending Radius(mm)
|
Install
|
20D
|
|
|
Min. Bending Radius(mm)
|
Static |
10D
|
|
Features
Can be installed without cutting off the power
Light weight and small cable diameter, reducing the impact of ice, wind and the load on the tower and support
Large span, the maximum span is more than 1000 meters
Has excellent tensile properties and temperature characteristics
Life expectancy 30 years

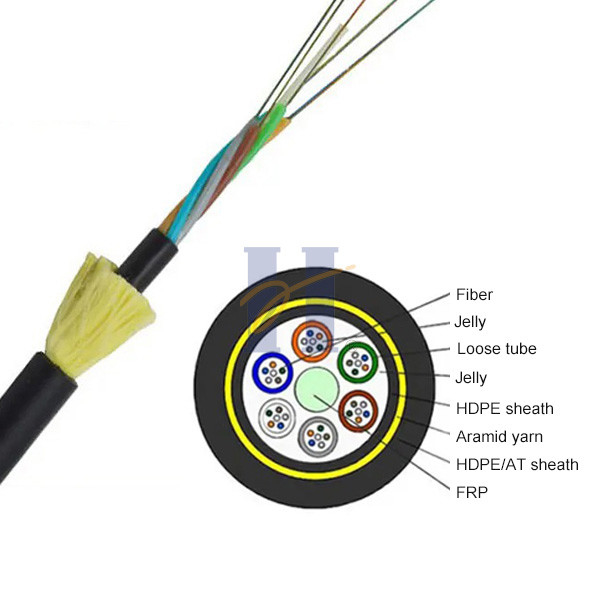

Cable structure:
Standard drum length
2000m/drum, 4000m/drum
Application
Widely used in self support aerial / overhead
Fiber specification
|
|
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation (+20℃)
|
@850nm
|
|
|
≤3.0 dB/km
|
|
|
@1300nm
|
|
|
≤1.0 dB/km
|
|
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
|
|
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
|
|
|
|
Bandwidth (Class A)
|
@850nm
|
|
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
|
|
≥1000 MHz·km
|
≥600 MHz·km
|
|
|
Numerical Aperture
|
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
Cable Cut-off Wavelengthλcc
|
|
≤1260nm
|
≤1480nm
|
|
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
