Product Name: |
144 Core Outdoor Optical Fiber Cable ADSS Fiber Cable All Dielectric Self-Supporting Cable |
Fiber Count: |
144 Core |
Fiber Type: |
G652D |
Span: |
200m |
Strength Member: |
FRP & Kevlar |
Loose Tube Material: |
PBT |
Crush: |
3000N/100mm |
Drum Length: |
2km Or 4km/drum |
Product Name: |
144 Core Outdoor Optical Fiber Cable ADSS Fiber Cable All Dielectric Self-Supporting Cable |
Fiber Count: |
144 Core |
Fiber Type: |
G652D |
Span: |
200m |
Strength Member: |
FRP & Kevlar |
Loose Tube Material: |
PBT |
Crush: |
3000N/100mm |
Drum Length: |
2km Or 4km/drum |

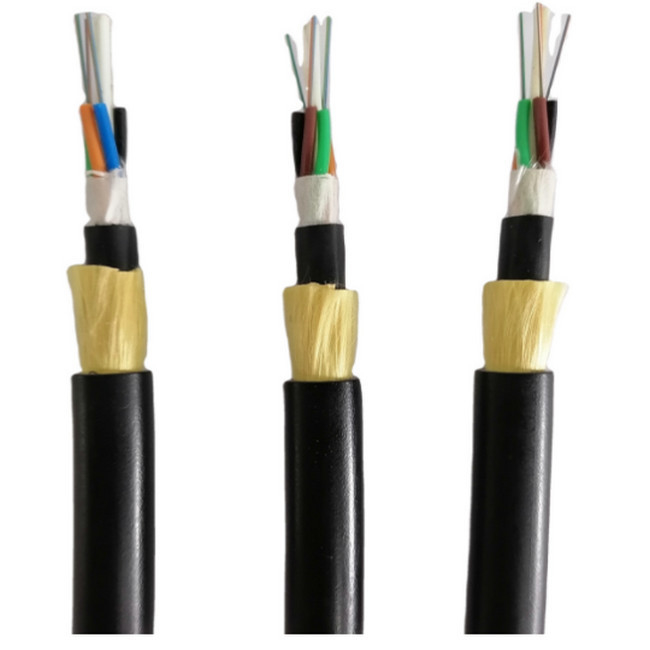

144 Core Outdoor Optical Fiber Cable ADSS Fiber Cable All Dielectric Self-Supporting Cable
Description
ADSS cable was developed from a military lightweight rugged deployable (LRD) field cable. With the continuous improvements, it is now used for short span aerial installations—typically on roadside power distribution poles. Since the ADSS cable is non-metallic, it is ideal for applications near high-voltage power distribution lines for which it has become a standard. Using single mode fibers and light wavelengths of either 1310 nm or 1550 nm, circuits up to 100 km long are possible without repeaters. Usually, ADSS was used in 48 and 96 cores. Here is a sketch of a normal ADSS cabling.
Technical specification
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
| 4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.5±0.2 | 80 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 12 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 24 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 80 |
| 36 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 85 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 85 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.3 | 85 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.0/3.4 | 1.7 | 11.8±0.3 | 123 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.0/6.2 | 1.7 | 14.5±0.3 | 175 |
Cable structure:
Application
1. Loose tube design
Stable performance and compatibility with all common fiber types
2. Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.
3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
4.Sutable for Aerial self-support installation
Standard drum length
2000m/drum, 4000m/drum
Fiber specification
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| 1310nm | mm | 9.2±0.4 | |
| Mode field diameter | 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| 1310nm | dB/km | ≤0.36 | |
| Attenuation Coefficient | 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 | |
FAQ
Q1:Are you a factory or trading company?
Definitely,we are real factory which is professional in manufacturing different types of outdoor&indoor fiber optical cables with10000 square meters plant area.we are warmly welcome you to visit us!
Q2:How can I know you price?
We usually quote within 24 hours after we get your inquiry(Except weekend or holidays)if you very urgent to know the price,pls call me or mail me or in other ways so that we can give you very fast quotation.
In addition,if you want to know very accutately price,pls send me your specific needs,it's better you have the technical specifications,the more specific information given.the more accurate price we can offer you!
Q3:May I buy samples from you?
Of course,I think this is excellent way for you to know us and know the products we offer directly when we have first cooperation!
Q4:Can you support OEM product under our brand?
yes,we support OEM service,we can print your logo and mark on the cable,box according to your ideas so pls never mind to tell me your requirements
Q5:Can you accept small order?
Of course,Small order is avaliable,usually,our MOQ is 1000meter.
Q6:How can we guarantee quality?
Always final inspection before shipment
