Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: ADSS-96B1.3
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
96 Core Non Metallic Single Jacket ADSS Fiber Cable 100m Span Overhead Aerial Cable |
Fiber Count: |
96 Core |
Fiber Type: |
G652D |
Jacket: |
HDPE Or AT |
Span: |
100m |
Operating Temperature: |
-40 ~ +60 C |
Structure: |
Stranded Loose Tube |
Packing Detail: |
Wooden Drum |
Product Name: |
96 Core Non Metallic Single Jacket ADSS Fiber Cable 100m Span Overhead Aerial Cable |
Fiber Count: |
96 Core |
Fiber Type: |
G652D |
Jacket: |
HDPE Or AT |
Span: |
100m |
Operating Temperature: |
-40 ~ +60 C |
Structure: |
Stranded Loose Tube |
Packing Detail: |
Wooden Drum |
96 Core Non Metallic Single Jacket ADSS Fiber Cable 100m Span Overhead Aerial Cable
Description
ADSS fiber optic cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network. Huiyuan manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred.
Technical specification
| Cable fiber count | / | 2~30 | 32~60 | 62~72 | |||
| Structure | / | 1+5 | 1+5 | 1+6 | |||
| Fiber style | / | G.652D | |||||
| Central strength member | material | mm | FRP | ||||
| Diameter (average) | 1.5 | 1.5 | 2.1 | ||||
| Loose Tube | Material | mm | PBT | ||||
| Diameter (average) | 1.8 | 2.1 | 2.1 | ||||
| Thickness(average) | 0.32 | 0.35 | 0.35 | ||||
| Max fiber/loose tube | 6 | 12 | 12 | ||||
| Tubes color | Full color identification | ||||||
| Fiber excess length | % | 0.7~0.8 | |||||
| Water resistance | Material | / | Cable jelly | ||||
| Inner sehath | material | mm | MDPE | ||||
| Inner sheath | 0.9mm | ||||||
| Non-metallic strengthen components | Material | / | Aramid Yarn | ||||
| Outer sheath | material | mm | MDPE | ||||
| Outer sheath | 1.8mm | ||||||
| Cable diameter(average) | mm | 10.9 | 11.5 | 12.1 | |||
| Cable weight (Approximate) | kg/km | 95 | 110 | 120 | |||
| Cable Sectional area | mm2 | 93.31 | 103.87 | 114.99 | |||
| Attenuation coefficient(Max) | 1310nm | dB/km | 0.35 | ||||
| 1550nm | 0.21 | ||||||
| Rated Tensile Strength(RTS) | kn | 6 | |||||
| Max allowed tension( MAT) | kn | 2.5 | |||||
| Annual average operating tension (EDS) | kn | 3.2 | |||||
| Young's modulus | kn/mm2 | 7.8 | |||||
| Coefficient of thermal expansion | 10-6/℃ | 9 | |||||
| Crush resistance | Long term | N/100mm | 1100 | ||||
| Short term | 2200 | ||||||
| Permission Bent Radius | static | mm | 15 of OD | ||||
| dynamic |
20 of OD
|
||||||

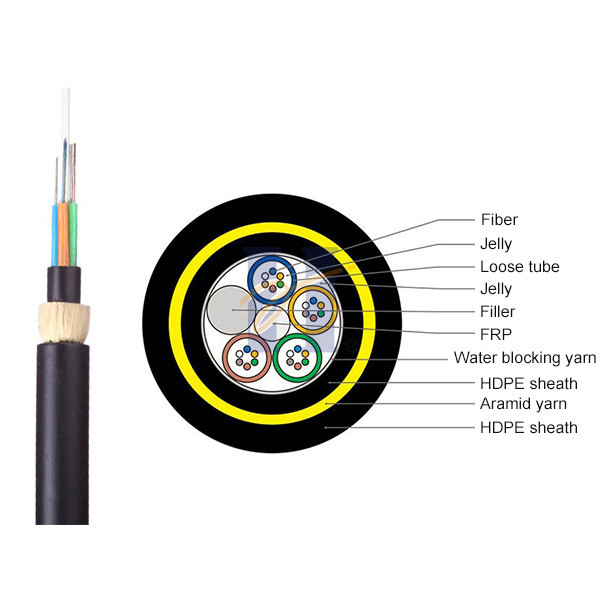

Cable structure:
Sheath marking
a. Supplier: HYOC or as customer required
b. Standard Code(Product Type, Fiber Type,Fiber Count)
c. Year of manufacture
d. Length marking in meters
Standard drum length
2000m/drum, 4000m/drum
Application
Widely used in self support aerial / overhead
Fiber specification
| Fiber type | Attenuation | Bandwidth | Numerical aperture | Optical cable cut-off wavelength | ||||
| (+20℃) | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
FAQ
1. Are you the real factory?
Yes,we are the real factory with 30 years' history.
2. What is your fiber brand?
Fiber brands including: YOFC
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years' Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
