Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: ADSS-36B1.3
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
36 Core Outdoor Overhead Self-Supporting Single Mode ADSS Fiber Cable Aerial Fiber Optic Cable |
Fiber Count: |
36 Core |
Fiber Type: |
G652D |
Span: |
200m |
Color: |
Black |
Structure: |
Stranded Loose Tube |
Central Strength Menber: |
FRP |
Certification: |
ISO9001 |
Product Name: |
36 Core Outdoor Overhead Self-Supporting Single Mode ADSS Fiber Cable Aerial Fiber Optic Cable |
Fiber Count: |
36 Core |
Fiber Type: |
G652D |
Span: |
200m |
Color: |
Black |
Structure: |
Stranded Loose Tube |
Central Strength Menber: |
FRP |
Certification: |
ISO9001 |
36 Core Outdoor Overhead Self-Supporting Single Mode ADSS Fiber Cable Aerial Fiber Optic Cable
Description
ADSS cable is a type of fiber optic cable that is strong enough to support itself between structures without containing conductive metal elements. Both single mode and multimode fibers can be arranged in ADSS cables with a maximum of 144 fibers. ADSS fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations. The cabling system that includes cables, suspension, dead-end, and termination enclosures offers a comprehensive transmission circuit infrastructure with high-reliability performance.
Technical specification
Item | Parameters | |
Fiber | Type | G652D |
Count | 2-288 Cores | |
Loose tube | Material | PBT |
Color | Blue,Orange,Green,Brown | |
Filler | Material | PE |
Color | Natural color | |
Central Strength Member | Material | FRP |
Non-metal reinforced pieces | Matrial | Aramid yarn |
Outer jacket | Material | PE |
Min.bending radius | Static | 10 times cable diameter |
Dynamic | 20 times cable diameter | |
Repeating bending | Load:150N; number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage | |
Crush | Short term | 1000N/100mm |
Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage | |
Impact | Impact energy : 450g × 1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. | |

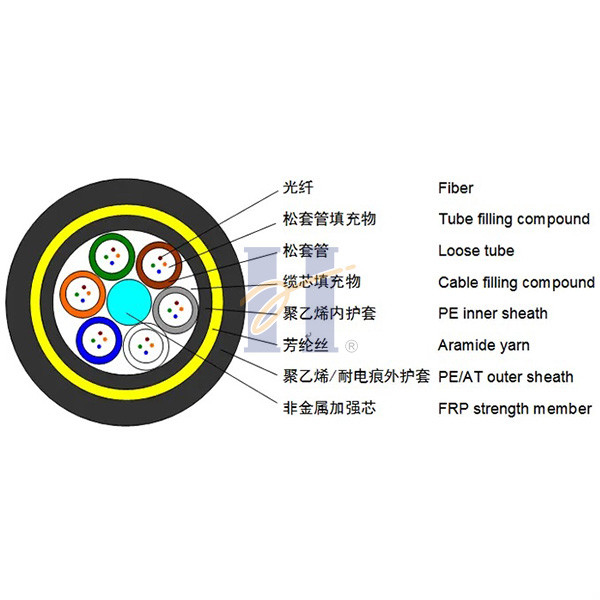

Cable structure:
Application
Utilized for telecommunications by power utilities, telcos, and private network groups
Designed for installation on distribution and transmission lines
Capable of being installed in close proximity to conductors if security is a concern
Suitable for underbuild applications, minimizing the need for outages
Used for telecom networks where quick, low-cost installation is a priority
Standard drum length
2000m/drum, 4000m/drum
Test requirement
| No | Item | Test standard | Method | Acceptance criteria |
| 1 | Tensile | IEC-60794-1-E1 | -Max. Tensile strength | -Fiber strain at maximum |
| test | -Sample length:50 meters | Load: max. 0.33% | ||
| -Time: 1minutes; | -Attenuation increase≤0.10dB | |||
| 2 | Crush | IEC-60794-1-E3 | -Load:2200N | -No splits or cracks in the |
| test | -Time: 1 minutes | outer jacket; | ||
| -Length: 100mm | -Attenuation increase<0.10dB, | |||
| 3 | Impact | IEC-60794-1-E4 | -Impact energy: 450g | -No splits or cracks in the outer jacket |
| test | - Height:1 meter | -Attenuation increase≤0.10dB(after the test) | ||
| -Impact points: min.1 | ||||
| --Number of impacts: 5 | ||||
| 4 | Torsion | IEC-60794-1-E7 | -1m cable length with 150N weight | - No splits or cracks in the outer jacket |
| test | -±180°, 10 cycles | -Attenuation increase ≤0.10B | ||
| 5 | Repeated bending | IEC-60794-1-E6 | -R=20×cable outer diameter | - No splits or cracks in the outer jacket |
| -1m cable length with 150N weight,30 cycles | -Attenuation increase ≤0.10dB(after the test) | |||
| 6 | Temperature cycling test | IEC-60794-1-F1 | -Temperature step: +20℃→-40℃→+70℃→-40℃→+70℃→+20℃ | -Attenuation variation for reference value(the attenuation to be measured before test at +20±3℃) ≤0.10dB, |
| -Time per each step: 12 hrs | ||||
| -Number of cycles: 2 cycles | ||||
| 7 | Water penetration test | IEC-60794-1-F5 | -Water height: 1m | -No water leakage at the end of the sample |
| -Sample length:3m | ||||
| -Duration of test: 24hrs | ||||
| 8 | Drip test | IEC-60794-1-E14 | -Five 0.3m samples suspended vertically in a climate chamber, raised temperature to +70℃ | -No filling compound shall drip from tubes after 24 hr |
FAQ
1. Are you the real factory?
Yes,we are the real factory with 30 years of optical fiber cable manufacture experience.
2. What is your fiber brand?
Fiber brands including: YOFC & CDSEI (a joint brand of Sumitomo & local company)
3. What is your main products?
ADSS, OPGW, Air blown cable (including EPFU, MINI & Micro cable), Online monitoring system of high voltage power transmission line
4. What is your delivery time?
Normally 7 days
5. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
6. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.
7. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
