Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: ADSS-48B1.3
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
Water Resistant 48 Core 500m Span OFC ADSS Fiber Cable Aerial Fiber Optic Cable |
Fiber Count: |
4 -144 Core |
Fiber Type: |
G652D |
Length: |
2km/drum Or Customized |
Jacket Color: |
Black |
Strength Member: |
FRP |
Span: |
Above 100m |
Installation: |
Self-support Aerial |
Product Name: |
Water Resistant 48 Core 500m Span OFC ADSS Fiber Cable Aerial Fiber Optic Cable |
Fiber Count: |
4 -144 Core |
Fiber Type: |
G652D |
Length: |
2km/drum Or Customized |
Jacket Color: |
Black |
Strength Member: |
FRP |
Span: |
Above 100m |
Installation: |
Self-support Aerial |
Water Resistant 48 Core 500m Span OFC ADSS Fiber Cable Aerial Fiber Optic Cable
Description
ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Technical specification
| Cable structure | name | ADSS-48B1-PE-100 |
| FRPCenter strengthen member | 2.0mm | |
| fiber filling compound | 2.2±0.1mm | |
| PE Outside thickness | 1.8±0.2mm | |
| Cable diameter | 10.0±0.3mm | |
| cable weight | 85±10%kg/km | |
| Loose tube nurmber | 4Fo | |
| fiber count of tube | 12fibers | |
| Loose tube color | Blue,Orange,Green,Brown, | |
| Optical fiber color | Blue,Orange,Green,Brown,Gray,Natural,Red,Black,Yellow,Purple,Pink,Aqua. |
Features
Crush resistance and flexibility,The following measures are taken to ensure the cable watertight
100% cable core filling,Loose tube filling compound
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Single Fiber Reinforced Plastic as the central strength member

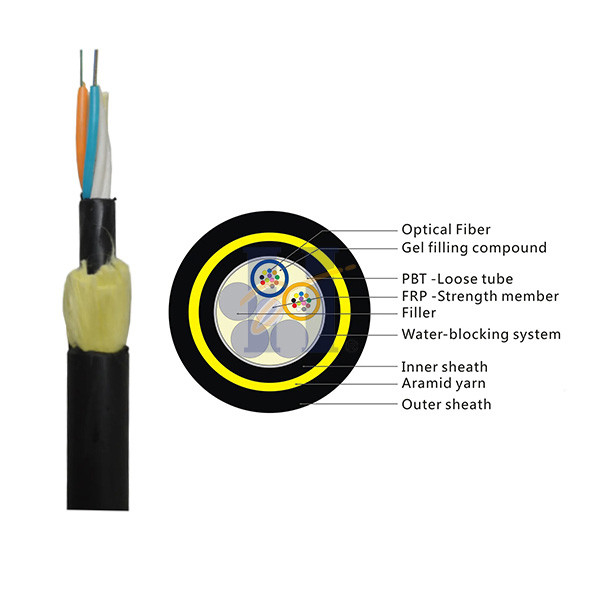

Cable structure:
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Fiber specification
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
4-144 core ADSS Fiber Optic Cable
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter /pad diameter(mm) | Nominal Thickness of outer jacket(mm) | Cable diameter (mm) | Cable Weight (kg/km) |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 81 |
| 8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 82 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 83 |
| 36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7 | 10.5±0.5 | 84 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 93 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7 | 11.1±0.5 | 95 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7 | 12.5±0.5 | 122 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.5/6.4 | 1.7 | 15.5±0.5 | 185 |
Remarks
Usually we only attach the test report on the packaging, but your request is available too. For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
