Product Name: |
288 Fiber G.652D Single Mode Fiber Optic Cable Air Blown Optic Cable Mikrokabel |
Fiber Count: |
288 Fiber |
Fiber Type: |
G652D |
Cable Diameter: |
9.4mm(±0.2mm) |
Jacket Color: |
Black |
Application: |
FTTx |
Type Of Installation: |
Air Blowing |
Blowing Distance: |
1000m |
Product Name: |
288 Fiber G.652D Single Mode Fiber Optic Cable Air Blown Optic Cable Mikrokabel |
Fiber Count: |
288 Fiber |
Fiber Type: |
G652D |
Cable Diameter: |
9.4mm(±0.2mm) |
Jacket Color: |
Black |
Application: |
FTTx |
Type Of Installation: |
Air Blowing |
Blowing Distance: |
1000m |
288 Fiber G.652D Single Mode Fiber Optic Cable Air Blown Optic Cable Mikrokabel
Description
Huiyuan is professional in producing air blowng layer stranding micro cable has has below advantages.
• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
Technical specification:
| P/N | GCYFY-288 | |
| Fibre Count | 288 | |
| Number of loose tube | 9+15 | |
| Number of filled string | 0 | |
| Number of fiber/tube | 12 | |
| Overall Diameter | 9.4±0.2mm | |
| Weight | 78 kg/km | |
| Min. Bending radius - Static | 12*Cable diameter | |
| Min. Bending radius - Dynamic | 20*cable diameter | |
| Cable Fiber Attenuation (single mode) | 0.35dB/km max @1310nm 0.22dB/km max @1550nm | |
| Temperature range | Storage -40 to +70℃, Installation -10 to +40℃, Operation -40 to +70℃ | |
| Cable service life (estimate value) | 25 years | |
Fiber specification:
| Characteristics | Specified Values | |
| Mode field diameter | at 1310nm | 9.2±0.4µm |
| at 1550nm | 10.4 ± 0.6mm | |
| Attenuation coefficient | at 1310nm | ≤0.40dB/km |
| at 1550nm | ≤0.30dB/km | |
| Cladding diameter | 125.0±1.0µm | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter | 245.0±10.0µm | |
| Coating-cladding concentricity error | ≤12.0µm | |
| Coating non-circularity | ≤6.0% | |
| Core-cladding concentricity error | ≤0.8µm | |
| Curling | ≥4m | |
| Proof stress | ≥0.69GPa | |
| Coating strip force | Average value | 1.0-5.0N |
| Peak value | 1.3-8.9N | |
| Macro bending loss | Ф60mm, 100 circles, at 1550nm | ≤0.05dB |
| Ф32mm, 1 circles, at 1550nm | ≤0.05dB | |
Cable structure:

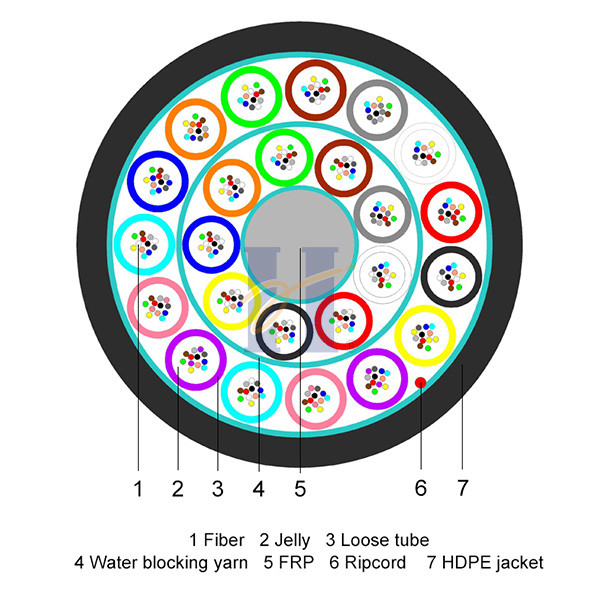

1. Fiber 2. Ripcord 3. Water blocking yarn 4. FRP 5. Loose tube 6. HDPE jacket
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Fiber color
| Fiber No.1 = Blue |
| Fiber No.2 = Orange |
| Fiber No.3 = Green |
| Fiber No.4 = Brown |
| Fiber No.5 = Slate |
| Fiber No.6 = White |
| Fiber No.7 = Red |
| Fiber No.8 = Black |
| Fiber No.9 = Yellow |
| Fiber No.10 = Violet |
| Fiber No.11 = Rose |
| Fiber No.12 = Aqua |
Loose tube color
| Inner layer | Outer layer |
| Loose tube No.1 = Blue | Loose tube No.10 = Violet |
| Loose tube No.2 = Orange | Loose tube No.11 = Rose |
| Loose tube No.3 = Green | Loose tube No.12 = Aqua |
| Loose tube No.4 = Brown | Loose tube No.13 = Blue |
| Loose tube No.5 = Slate | Loose tube No.14 = Orange |
| Loose tube No.6 = White | Loose tube No.15 = Green |
| Loose tube No.7 = Red | Loose tube No.16 = Brown |
| Loose tube No.8 = Black | Loose tube No.17 = Slate |
| Loose tube No.9 = Yellow | Loose tube No.18 = White |
| Loose tube No.19 = Red | |
| Loose tube No.20 = Black | |
| Loose tube No.21 = Yellow | |
| Loose tube No.22 = Violet | |
| Loose tube No.23 = Rose | |
| Loose tube No.24 = Aqua |
Cable text print: (Support customized text)
HYOC GCYFTY 288 G652D [Drum No.] [Month-Year] [Meter marking]
Order information
| Number of fibres | Fibre class | Part name |
| 288 | G657A1 | MICRO 24X12F G657A1 9.40MM |
| 288 | G652D | MICRO 24X12F G652D 9.40MM |
| 288 | OM1 | MICRO 24X12F OM1 9.40MM |
| 288 | OM2 | MICRO 24X12F OM2 9.40MM |
| 288 | OM3 | MICRO 24X12F OM3 9.40MM |
| 288 | OM4 | MICRO 24X12F OM4 9.40MM |
