FTTH Air Blowing Bundle Fibres 12 G652D EPFU Fiber Optic Cable Bundle
Description
HUIYUAN's air blown fiber unit (also known as EPFU) is designed for air-blown installation applications, using microduct systems in access networks. It has below characteristics:
Fiber bundle encapsulated in a layer of acrylate
Up to 24 color-coded optical fibers
Super small fiber bundle
Harder HDPE outer layer to enhance blowing performance
Singlemode & multimode fiber optional
Technical specification:
| Items | Parameter | |
| Optical fiber | G652D | |
| Fibre type | Singlemode | |
| Number of fiber | 12C | |
| Outer sheath material | Vergin HDPE | |
| Cable nominal diameter (±0.05mm) | 1.65mm | |
| Cable approx. weight (kg/km) | 1.8 | |
| Max. tensile strength | Short time | 16N |
| Max. crush resistance | Short time | 100N/100mm |
| Minimum Bending radius | Dynamic | 36 mm |
| Static | 18 mm | |
| Air Blowing | Equipment: PR140, Duct: 5/3.5mm, Blowing pressure: ≤10bar, Typical blowing length: 1000m |
|
| Applicable microduct | 5.00/3.50mm tube | |
Blowing test:
| Fiber Count | 12F |
| Test equipment | PLUMETTAZ UM25; ERICSSON F; CATWAY FBT-1.1 |
| Standard duct | 5.0/3.5 mm |
| Air pressure | 7bar / 10bar |
| Typical blowing distance | 500m / 800m |
| Typical blowing time | 15min / 20min |
Fiber specification:
| Characteristics | Specified Values | Units | |
| Mode field diameter | at 1310nm | 9.2±0.4 | µm |
| at 1550nm | 10.4 ± 0.6 | mm | |
| Attenuation coefficient | at 1310nm | ≤0.40 | dB/km |
| at 1550nm | ≤0.30 | dB/km | |
| Zero dispersion wavelength ( λ0) | 1300 ～1324 | nm | |
| Max zero dispersion slope (S0max) | ≤0.092 | ps/(nm2·km) | |
| Cut-off wavelength (λcc) | ≤1260 | nm | |
| Dispersion coefficient | 1285～1330nm | ≤3.5 | ps/(nm·km) |
| 1550nm | ≤18 | ps/(nm·km) | |
| Effective group index of refraction (Neff) | at 1310nm | 1.466 | － |
| at 1550nm | 1.467 | － | |
| Cladding diameter | 125.0±1.0 | µm | |
| Cladding non-circularity | ≤1.0 | % | |
| Coating diameter | 245.0±10.0 | µm | |
| Coating strip force | Average value | 1.0-5.0 | N |
| Peak value | 1.3-8.9 | N | |
| Macro bending loss | Ф60mm, 100 circles, at 1550nm | ≤0.05 | dB |
| Ф32mm, 1 circles, at 1550nm | ≤0.05 | dB | |

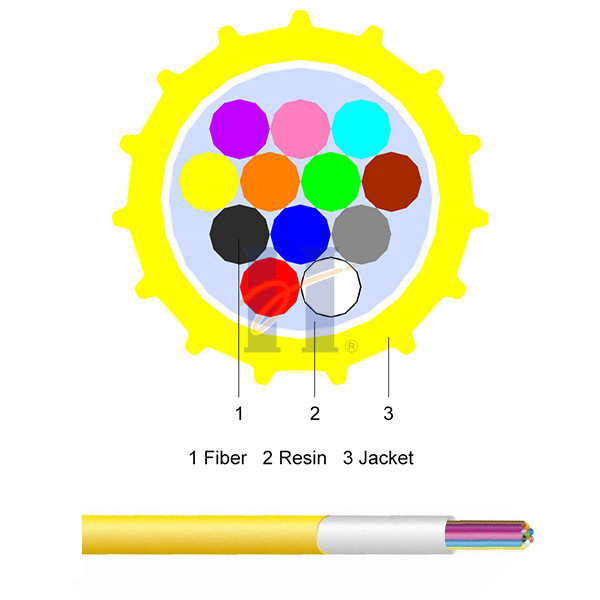

Cable construction:
1. G652D fiber 2. Resin 3. Filler fibers 4. Groove 5. HDPE sheath
Mechanical Performance
| Mechanical Performance (all optical measurements at 1300 nm and 850 nm) | |||
| Test | Test Method | Test Parameters | Product Specification |
| Tensile Performance | EN 187000 A1/ 501 IEC60 794-12-E1 | Load is 1km mass (1W) Duration 10 min | Fibre strain ≤0.4% at max. force 1No attenuation increment and fibre strain 0.05% after test. |
| Tensile Service Load | Maximum W/3 Duration of product lifetime | Given tensile performance above, product lifetime loading as per industry best practice. | |
| Flexing | IEC 60794-1-2-E11A | Diam 40mm x 3 turns 5 cycles at 20°C | 1No attenuation increment after test. |
| Crush I | IEC 60794-1-2-E3 | 100 mm plate, 100N, 1 min, 3 tests at different places | 1No attenuation increment after test. |
| Crush II | IEC 60794-1-2-E3 | 100 mm plate, 500N, 15 min, 3 tests at different places | No fibres broken. |
Standard drum length
2000m/drum & 4000m/drum
Fiber color: (Support customized color)
| DIN | No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Green | Blue | Yellow | White | Grey | Brown | Violet | Aqua | Black | Orange | Pink |
Cable text print: (Support customized text)
HYOC FU 12F G652D [Drum No.] [Month-Year] [Meter marking]
Packing details:
| Fiber Count |
Length |
Packing size |
Gross weight |
| 12 Fibers | 1000m/drum | 510*510*200mm | 8kg |
| 2000m/drum | 510*510*200mm | 10kg | |
| 3000m/drum | 510*510*300mm | 14kg | |
| 4000m/drum | 510*510*300mm | 15kg |
