Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: EPFU-4G652D-1.15
Payment & Shipping Terms
Minimum Order Quantity: 10KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
Air Blown Fiber Optic Cable 4 Core G652D EPFU Blown Fiber Cable |
Fiber Count: |
4 Core |
Fiber: |
G652D |
Cable Diameter: |
1.15mm±0.03mm |
Cable Weight: |
1kg/km |
Sheath Material: |
All New HDPE |
Application: |
For Indoor Use, Network |
Blow Distance: |
1000 Metre |
Product Name: |
Air Blown Fiber Optic Cable 4 Core G652D EPFU Blown Fiber Cable |
Fiber Count: |
4 Core |
Fiber: |
G652D |
Cable Diameter: |
1.15mm±0.03mm |
Cable Weight: |
1kg/km |
Sheath Material: |
All New HDPE |
Application: |
For Indoor Use, Network |
Blow Distance: |
1000 Metre |

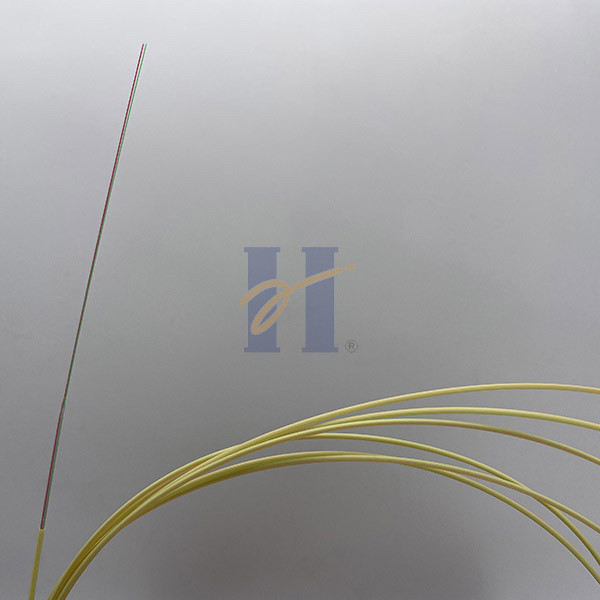

Air Blown Fiber Optic Cable 4 Core G652D EPFU blown fiber cable
Description
Huiyuan's air blown fiber unit (EPFU) cables are a family of micro-canalisation cables for microducts of up to 3.5mm in inner diameter. It's a light weight construction optical fiber cable with super small diameter, fully dielectric, all dry and yellow HDPE jacket. The cable fibers are coded under EIA/TIA-598, or you could customize your own color. Each cable contains up to 24 fibers protected by a soft acrylate layer. The cables are designed for installation by air blowing.
Technical specification:
| Items | Value | |
| Optical fiber | G652D | |
| Fibre type | Single mode | |
| Number of fiber | 4 fiber | |
| Outer sheath material | Polyethylene | |
| Cable nominal diameter(±0.05mm) | 1.15mm | |
| Cable approx. weight (kg/km) | 1 | |
| Max. tensile strength | Short time | 9N |
| Temperature range | Installation | -10℃ to +40℃ |
| Storage | -20℃ to +60℃ | |
| Operation | -20℃ to +60℃ | |
Blowing test:
| Fiber Count | 4F |
| Standard duct | 5.0/3.5 mm |
| Air pressure | 10bar |
| Typical blowing distance | 1000 m |
| Typical blowing time | 20 min |
Fiber specification:
| Characteristics | Parameter | Units | |
| Mode field diameter | at 1310nm | 9.2±0.4 | µm |
| at 1550nm | 10.4 ± 0.6 | mm | |
| Attenuation coefficient | at 1310nm | ≤0.40 | dB/km |
| at 1550nm | ≤0.30 | dB/km | |
| Cladding diameter | 125.0±1.0 | µm | |
| Cladding non-circularity | ≤1.0 | % | |
| Coating diameter | 245.0±10.0 | µm | |
| Proof stress | ≥0.69 | GPa | |
| Coating strip force | Average value | 1.0-5.0 | N |
| Peak value | 1.3-8.9 | N | |
| Macro bending loss | Ф60mm, 100 circles, at 1550nm | ≤0.05 | dB |
| Ф32mm, 1 circles, at 1550nm | ≤0.05 | dB | |
Cable structure:
1. Optical fiber 2. Resin 3. Filler fibers 4. Groove 5. HDPE sheath
Standards:
| ITU-T G.652.D | Characteristics of a single-mode optical fiber and cable |
| ANSI/TIA/EIA 598-C | Optical Fibre Cable Colour Coding |
| IEC 60794-1-2:2017 | Optical fibre cables - Part 1-2: Generic specification - Basic optical cable test procedures - General guidance |
| IEC 60068-2-38:2009 | Environmental testing - Part 2-38: Tests - Test Z/AD: Composite temperature/humidity cyclic test |
| IEC 60794-5:2014 | Optical fibre cables - Part 5: Sectional specification - Microduct cabling for installation by blowing |
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Also accept customized drum length
Fiber color: (Support customized color)
| No. | 1 | 2 | 3 | 4 |
| Color | Blue | Orange | Green | Brown |
Cable text print: (Support customized text)
HYOC EPFU 4 G652D [Drum No.] [Month-Year] [Meter marking]
Packing details:
| Fiber Count |
Length (m/drum) |
Packing size (mm) |
Gross weight (kg/drum) |
| 4 Fibers | 2000m/drum | 510*510*200mm | 8kg |
| 4000m/drum | 510*510*200mm | 10kg | |
| 6000m/drum | 510*510*300mm | 12kg |
