Home > products > Air Blown Fiber Microduct > HDPE Microduct Multiple Air Blown Fiber Microduct for Micro Fiber Optic Cable

HDPE Microduct Multiple Air Blown Fiber Microduct for Micro Fiber Optic Cable

Product Details

Place of Origin: CHENGDU, CHINA

Brand Name: HUIYUAN

Certification: ISO9001

Model Number: 2WAY5/3.5

Payment & Shipping Terms

Minimum Order Quantity: 2KM

Price: Negotiable

Packaging Details: Wooden drum

Delivery Time: 5 to 20 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000km/month

Get Best Price
High Light:

Multiple HDPE Microduct

,

Multiple Air Blown Fiber Microduct

,

HDPE Micro Fiber Optic Cable

Product Name:
HDPE Microduct Multi Pipe Air Blown Fiber Microduct For Micro Fiber Optic Cable
Sheath Material:
HDPE
Sheath Color:
Orange
Jacket Thickness:
1.7mm
Inner Tube Diameter:
5/3.5mm
Bundle Diameter:
13.4*8.4mm
Weight:
64kg/km
Tensile:
620N
Product Name:
HDPE Microduct Multi Pipe Air Blown Fiber Microduct For Micro Fiber Optic Cable
Sheath Material:
HDPE
Sheath Color:
Orange
Jacket Thickness:
1.7mm
Inner Tube Diameter:
5/3.5mm
Bundle Diameter:
13.4*8.4mm
Weight:
64kg/km
Tensile:
620N

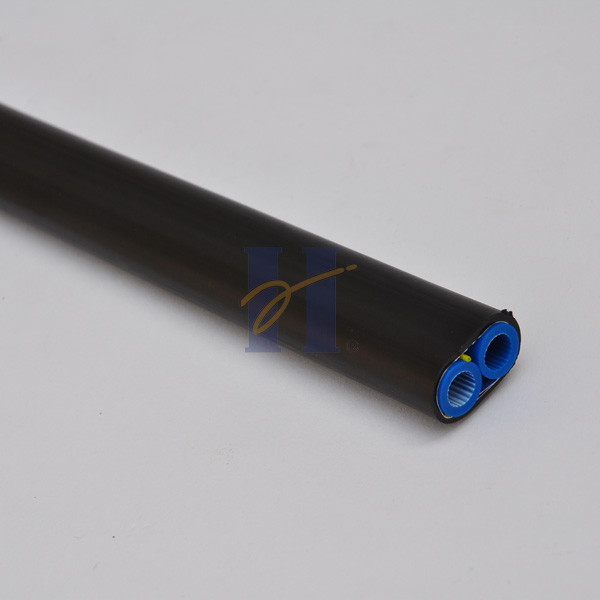

HDPE Microduct Multiple Air Blown Fiber Microduct for Micro Fiber Optic Cable

HDPE Microduct Multi Pipe Air Blown Fiber Microduct for Micro Fiber Optic Cable



Features



The HUIYUAN Microduct bundle is a tube bundle that is made up of several single Microduct This tube bundle is used in network applications, such as FttH (Fiber to the Home), backbones or last mile. They are suitable for direct buried installation and for inserting or pushing into cable shafts, into HUIYUAN single Microduct or other pipe systems.



Features & benefits



Wide range of colours: inner pipes natural-coloured with stripes or fully tinted; the standard sheathing is orange or black, optionally with stripes
Standard design: with thin, flexible outer sheathing; version with a rigid and calibrated outer pipe possible
Twist- and stress-free inner pipes
Different bundles of up to 24 HUIYUAN Microduct plus guide pipe
open trench installation in sandbed, jetting, insertion or push into cable ducts, HUIYUAN Microduct or other pipe systems, tube bundle consisting of several HUIYUAN Microduct



Technical specification:



Inner microduct: 5/3.5mm

Bundle diamter: 13.4*8.4mm (±1.1mm)

Sheath thickness: 1.7mm (±0.2mm)

Bundle weight: 64kg/km

Tensile strength: 620N

Min bending radius: 168mm

Crush: 800N

Ripcord optional


Raw material:


HDPE of a high-molecular type with the following parameters is used for production of the Tube Bundle:

  • Melt flow index:                                                   0.1 ~ 0.4 g/10 minutes               EN ISO 1133

                                                                                      (190 °C, 2.16 KG)

  • Density:                                                               Min. 0.940 g/cm3                        ISO 1183
  • Tensile strength at yield:                                      Min. 20MPa                                ISO 527
  • Elongation at the break:                                      Min 350%                                    ISO 527
  • Environmental stress crack resist (F50)              Min. 96 hours                             ISO 4599


Structure:

HDPE Microduct Multiple Air Blown Fiber Microduct for Micro Fiber Optic Cable 0



Test standards



Tensile Strength      IEC 60794-1-2 Method E1
Bend                       IEC 60794-1-2 Method E11
Kink                        IEC 60794-1-2 Method E10
Impact                     IEC 60794-1-2 Method E4
Crush                      IEC 60794-1-2 Method E3



Standard drum length



2000m/drum



Text print: (Support customized text)

HYOC MICRODUCT BUNDLE 2WAY HDPE 5/3.5 [Month-Year] [Meter marking]
