HDPE Microduct Multipipe Air Blown Fiber Microduct For Optical Fiber Cable Installation

HDPE Microduct Multi Pipe Air Blown Fiber Microduct for Optical Fiber Cable Installation

Features

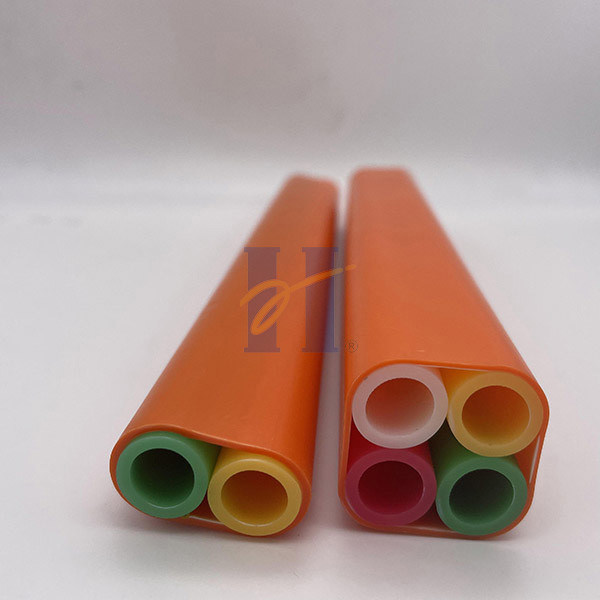

The HUIYUAN Microduct Bundle is a pipe bundle which is formed by HUIYUAN Microduct single pipes. This tube bundle is used in network applications, such as backbones, FTTH or last mile communications. The ducts could be direct buried, direck installed and put in micro trench crossing road.

Features & benefits

Wide range of colours: inner tubes colored with different color; Sheath colored in standard orange or other optional colors
Standard design: with thin, flexible outer sheathing; version with a rigid and calibrated outer pipe possible
Twist- and stress-free inner tubes
Different bundles of up to 24 microducts

Technical specification:

Inner microduct: 10/8mm

Bundle diamter: 23.4*13.4mm (±1.1mm)

Jacket thickness: 1.7mm (±0.2mm)

Weight: 150kg/km

Max tensile strength: 1450N

Min bending radius: 150mm

Crush strength: 1000N

Remarks: Ripcord optional


Raw material:


HDPE of a high-molecular type with the following parameters is used for production of the Tube Bundle:

• Melt flow index:                                                   0.1 ～ 0.4 g/10 minutes               EN ISO 1133

                                                                                      (190 °C, 2.16 KG)

• Density:                                                               Min. 0.940 g/cm3                        ISO 1183
• Tensile strength at yield:                                      Min. 20MPa                                ISO 527
• Elongation at the break:                                      Min 350%                                    ISO 527
• Environmental stress crack resist (F50)              Min. 96 hours                             ISO 4599


Structure:


Installation

Open trench installation crossing road
Air blowing (Jetting)
Insertion or push into cable tubes
Tube bundle consisting of several smaller tubes

Test standards

Tensile Strength      IEC 60794-1-2 Method E1
Bend                       IEC 60794-1-2 Method E11
Kink                        IEC 60794-1-2 Method E10
Impact                     IEC 60794-1-2 Method E4
Crush                      IEC 60794-1-2 Method E3

Standard drum length

2000m/drum

Text print: (Support customized text)

HYOC MICRODUCT BUNDLE 2WAY HDPE 10/8 [Month-Year] [Meter marking]
