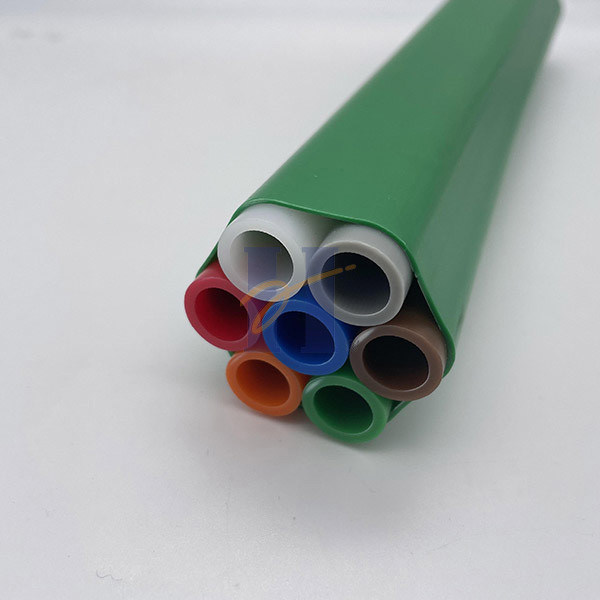

7 Ways 12/10mm HDPE Air Blown Fiber Microduct For Fiber Optic Cable Installation

Product Details

Place of Origin: CHENGDU, CHINA

Brand Name: HUIYUAN

Certification: ISO9001

Model Number: 7WAY 12/10

Payment & Shipping Terms

Minimum Order Quantity: 2KM

Price: Negotiable

Packaging Details: Wooden drum

Delivery Time: 5 to 20 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000km/month

Get Best Price
High Light:

10mm Fiber Optic Cable Microduct

,

12mm Air Blown Fiber Microduct

,

7 Ways Fiber Microduct

Product Name:
7 Ways 12/10mm HDPE Air Blown Fiber Microduct For Fiber Optic Cable Installation
P/N:
DI1210-7
Bundle Material:
Green
Jacket Thickness:
1.7mm
Microduct Diameter:
12/10mm
Bundle Size:
39.4mm
Weight:
432kg/km
Tensile:
420N
Product Name:
7 Ways 12/10mm HDPE Air Blown Fiber Microduct For Fiber Optic Cable Installation
P/N:
DI1210-7
Bundle Material:
Green
Jacket Thickness:
1.7mm
Microduct Diameter:
12/10mm
Bundle Size:
39.4mm
Weight:
432kg/km
Tensile:
420N
7 Ways 12/10mm HDPE Air Blown Fiber Microduct For Fiber Optic Cable Installation

7 Ways 12/10mm HDPE Air Blown Fiber Microduct for fiber optic cable installation



Features



Air blown fiber microduct system is designed for modular construction of optical networks - a cost effective solution for urban areas, energy, industrial and commercial zones. The complete modular system consists of microcables blown into microduct bundle connected by passive components. The system can be placed both outdoors and indoors. With this system, you can save cost on upgrading the system in future by optical fiber cable blowing out & blowing in.



Features & benefits



Suitable for direct bury & direct installation
The bundle could be combined with 2 to 24 microducts
Easy installion & cost effective
Applicable in FTTH & backbone construction
LSZH material optional in indoor application



Technical specification:



Inner microduct: 12/10mm

Bundle diamter: 39.4mm (±1.1mm)

Jacket thickness: 1.7mm (±0.2mm)

Weight: 432kg/km

Max tensile strength: 4200N

Min bending radius: 800mm

Remarks: Ripcord optional


Raw material:


HDPE of a high-molecular type with the following parameters is used for production of the Tube Bundle:

  • Melt flow index:                                                   0.1 ~ 0.4 g/10 minutes               EN ISO 1133

                                                                                      (190 °C, 2.16 KG)

  • Density:                                                               Min. 0.940 g/cm3                        ISO 1183
  • Tensile strength at yield:                                      Min. 20MPa                                ISO 527
  • Elongation at the break:                                      Min 350%                                    ISO 527
  • Environmental stress crack resist (F50)              Min. 96 hours                             ISO 4599


Structure:

7 Ways 12/10mm HDPE Air Blown Fiber Microduct For Fiber Optic Cable Installation 0

Standard colors



Blue, Orange, Green, Brown & Gray



Test standards



Tensile Strength      IEC 60794-1-2 Method E1
Bend                       IEC 60794-1-2 Method E11
Kink                        IEC 60794-1-2 Method E10
Impact                     IEC 60794-1-2 Method E4
Crush                      IEC 60794-1-2 Method E3



Standard drum length



1500m/drum



Text print: (Support customized text)

HYOC MICRODUCT BUNDLE 7WAY HDPE 12/10 [Month-Year] [Meter marking]
