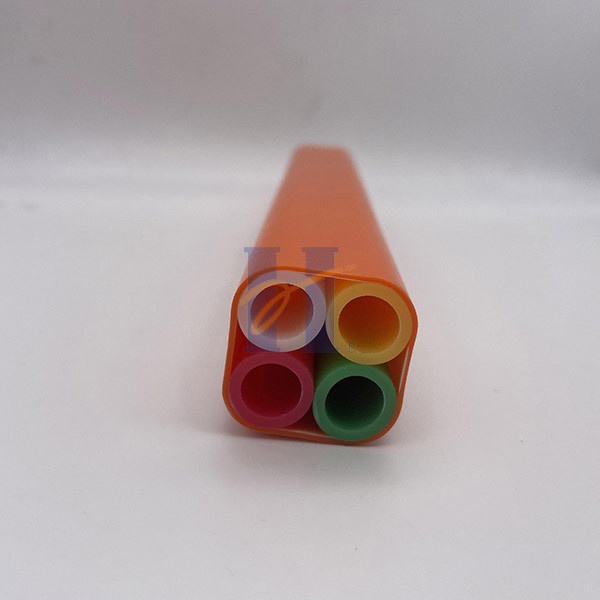

4 Ways 12/10mm HDPE Air Blown Fiber Microduct For Installing Micro Fiber Cables

Product Details

Place of Origin: CHENGDU, CHINA

Brand Name: HYOC

Certification: ISO9001

Model Number: 4WAY 12/10

Payment & Shipping Terms

Minimum Order Quantity: 2KM

Price: Negotiable

Packaging Details: Wooden drum

Delivery Time: 5 to 20 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000km/month

Get Best Price
High Light:

4Ways Air Blown Fiber Microduct

,

Micro Fiber Cables HDPE Microduct

,

10mm Air Blown Fiber Microduct

Product Name:
4 Ways 12/10mm HDPE Micro Duct Air Blown Fiber Microduct For Installing Micro Fiber Cables
Jacket Material:
HDPE
Jacket Color:
Orange Or Customized
Jacket Thickness:
1.7mm
Inner Duct Size:
12/10mm
Bundle Diameter:
32.4mm
Bundle Weight:
294kg/km
Crush Strength:
1000N
Product Name:
4 Ways 12/10mm HDPE Micro Duct Air Blown Fiber Microduct For Installing Micro Fiber Cables
Jacket Material:
HDPE
Jacket Color:
Orange Or Customized
Jacket Thickness:
1.7mm
Inner Duct Size:
12/10mm
Bundle Diameter:
32.4mm
Bundle Weight:
294kg/km
Crush Strength:
1000N
4 Ways 12/10mm HDPE Air Blown Fiber Microduct For Installing Micro Fiber Cables

4 Ways 12/10mm HDPE Micro Duct Air Blown Fiber Microduct for Installing Micro Fiber Cables



Features



Microduct is designed for fiber optic cable installation into new or existing conduits to maximize fiber capacity. Microducts are used to sub-divide 3/4" through 2" I.D. conduits facilitating future installation of additional fiber optic cables. The internal silicon layer, in combination with our factory lubrication process, provides low friction between micro cable and microduct. Air blown microduct cable system reduces costs while optimizing system flexibility for fiber installations.



Features & benefits



Optimizing system design and space utilization
Single and multiple (bundled) microducts for specific project needs
Silicon layer to maximize longer micro cable installations
Different colors available for easy identification
Meter marking for length caculation



Technical specification:



Inner microduct: 12/10mm

Outer diamter: 32.4mm (±1.1mm)

Jacket thickness: 1.7mm (±0.2mm)

Bundle weight: 294kg/km

Max tensile strength: 2800N

Remarks: Ripcord optional


Raw material:


HDPE of a high-molecular type with the following parameters is used for production of the Tube Bundle:

  • Melt flow index:                                                   0.1 ~ 0.4 g/10 minutes               EN ISO 1133

                                                                                      (190 °C, 2.16 KG)

  • Density:                                                               Min. 0.940 g/cm3                        ISO 1183
  • Tensile strength at yield:                                      Min. 20MPa                                ISO 527
  • Elongation at the break:                                      Min 350%                                    ISO 527
  • Environmental stress crack resist (F50)              Min. 96 hours                             ISO 4599


Structure:

4 Ways 12/10mm HDPE Air Blown Fiber Microduct For Installing Micro Fiber Cables 0

Standard colors:



Blue, Orange, Green, Brown & Gray



Standard Bundled Colors:


Blue, Orange, Green, Brown, Gray, Yellow & White



Optional Colors Available:


Terra Cotta, Pink, Lilac, Buff, Pipe Green, Red & Black



Standard drum length



1500m/drum



Text print: (Support customized text)

HUIYUAN MICRODUCT 4WAY HDPE 12/10 [Month-Year] [Meter marking]
