Product Details
Place of Origin: CHENGDU, CHINA
Brand Name: HUIYUAN
Certification: ISO9001
Model Number: OPGW-24B1.3
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 5 to 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000km/month
Product Name: |
24 Core Power Transmission Line OPGW Optical Fiber Composite Overhead Ground Wire |
Fiber Count: |
24F |
Fiber Type: |
G652D Or G655 |
Structure: |
SS Tube |
Jelly: |
Gel Filled Or Gel Free |
Application: |
Overhead Power Line |
Strength Member: |
AL Wire |
Packing: |
Iron-wooden Drum |
Product Name: |
24 Core Power Transmission Line OPGW Optical Fiber Composite Overhead Ground Wire |
Fiber Count: |
24F |
Fiber Type: |
G652D Or G655 |
Structure: |
SS Tube |
Jelly: |
Gel Filled Or Gel Free |
Application: |
Overhead Power Line |
Strength Member: |
AL Wire |
Packing: |
Iron-wooden Drum |

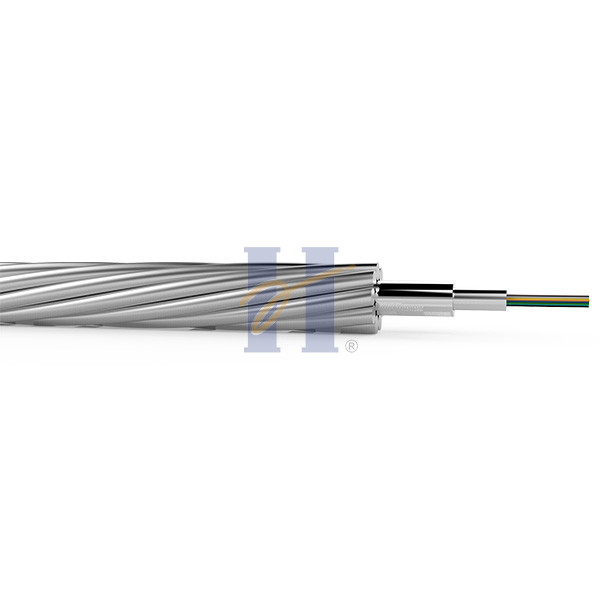

24 Core Power Transmission Line OPGW Optical Fiber Composite Overhead Ground Wire
Description
OPGW is a kind of overhead ground wire containing optical fiber, which has multiple functions such as overhead ground wire and optical communication. It is applicable to new aerial power route to satisfy the needs for big conductors and high voltage transmission, and is used to conduct large fault short circuit current to provide anti lightning protection.
Technical specification
| Classification | Material | Value | ||
| Construction |
Optical Fibre | G652D/G655 etc. | 2 - 144 | |
| Protection Tube | Stainless steel tube | 1.5 - 6mm | ||
| Stranded Line | AS wire/AA wire/Al Rod | 1.5 - 6mm | ||
| Max. Diameter | 30mm | |||
| Max. Cross Section | 500mm2 | |||
| Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | |||
| Max. Tensile Strength (RTS ) (kN) | 700 | |||
| Max. Crush Strength(N/100mm) | 3000 | |||
| Max. Short Current Capacity (40℃ to 200℃)(kA2s) | 2000 | |||
| Min. Bending Radius (Dynamic) | 20D | |||
| Min. Bending Radius (Static) | 15D | |||
| Environment Performance | Installation (℃) | -10 to +50 | ||
| Transportation and Operation (℃) | -40 to +65 | |||
Cable structure:
Features
Large diameter, large fiber capacity
The structure is stable and the reliability is high
Excellent capability against side and outstanding short circuit current capacity
The optimum stranding design can obtain the surplus length of secondary optical fiber
The number of strands can be designed in two or three layers
Match with common ground wires
Standard drum length
2000m/drum, 4000m/drum
Fiber specification
| Attenuation | Bandwidth | |||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |
| G652D | — | — | ≤0.35dB/km | ≤0.21dB/km | — | — |
| G655 | — | — | — | ≤0.22dB/km | — | — |
| 50/125μm | ≤3.0dB/km | ≤1.0dB/km | — | — | ≥600MHz.km | ≥1200MHz.km |
| 62.5/125μm | ≤3.5dB/km | ≤1.0dB/km | — | — | ≥200MHz.km | ≥600MHz.km |
FAQ
Q1.Are you trading company or manufacturer?
We are the manufacturer with 30 years' experience in producing air blown cable, OPGW & ADSS.
Q2.About the quality?
100% test our cable before delivery.
Q3.Trial order?
Yes, trial order is available.
We support new project of our customers, as we know business is always from small order.
Q4.Delivery time?
Normally about 3-7days working days, but depends on order quantity.
Q5.Customized products and logo?
Yes, we accept OEM contract.
