Product Details
Place of Origin: CHINA
Brand Name: HYOC
Certification: ISO9001
Model Number: OPGW-60
Payment & Shipping Terms
Minimum Order Quantity: 4KM
Price: 1000USD/KM to 3000USD/KM
Packaging Details: Iron drum
Delivery Time: 30 days
Supply Ability: 1000km/month
Voltage Level: |
100kv To 1000kv |
Fiber Count: |
12f To 48f |
Tensile Strength: |
50KN To 200KN |
Short Circuit Current: |
20 To 200kA²s |
Voltage Level: |
100kv To 1000kv |
Fiber Count: |
12f To 48f |
Tensile Strength: |
50KN To 200KN |
Short Circuit Current: |
20 To 200kA²s |
Overhead ground wires acs wire outside aerial overhead power line stainless steel tube design opgw fiber cable
Description:

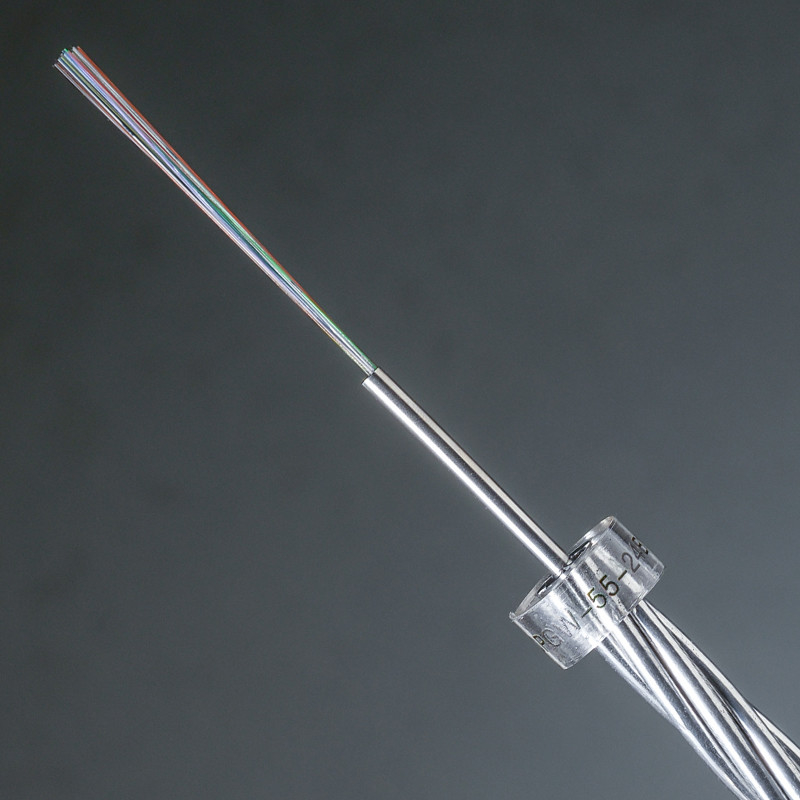

HUIYUAN's OPGW/OPPC (Optical Fiber Composite Overhead Ground Wire & Optical Phase Conductor) designs are based on highly reliable and robust stainless steel tube technology. The stainless steel tube is either stranded in the first layer of OPGW/OPPC (Stranded Tube Design) or placed in the core of cable (Central Tube Design).
Features:
Stainless-steel optical fiber unit of central loose tube and other wires are twisted simultaneously
Fiber can get a better excess length in the stainless-steel tube
Precise design of the cable cross-section ensures the electrical properties, mechanical and physical properties, and thermal stability of the cable
Cost effective
High quality
Standards:
ITU-T G.650: Definitions and test methods for linear, deterministic attributes of single-mode fiber and cable
ITU-T G.652: Characteristics of a single-mode optical fiber and cable
IEC 60793-2-50 B1.3: Sectional specification for class B single mode fibers
IEEE 1138: Standard Construction of Composite Fiber Optic Overhead Ground Wires (OPGW) for use on Electric Utility Power Lines
ASTM B398: Standard Specification for Aluminum-Alloy 6201-T81 Wire for Electrical Purposes
ASTM B 415: Standard Specification for Hard-Drawn Aluminum-Clad Steel Conductors
ASTM B416: Specification for Concentric-Lay-Stranded Aluminum-Clad Steel Conductors
EIA/TIA-455: Standard Test Procedures for Optic Fibers, Cables, Transducers, Sensors, Connecting and Terminating Devices and other Fiber Optic Components
EIA 492A: Generic Specification for Optical Waveguide Fibers
EIA 472A: Sectional Specification for Fiber Optic Communication Cables for Outside Aerial Use
Cable structure:
Technical details: (below are typical cable for reference)
| Items | OPGW-60 | OPGW-70 | OPGW-90 | OPGW-110 | OPGW-130 |
| No./diameter of optical tube (mm) | 1/3.5 | 2/2.4 | 2/2.6 | 2/2.8 | 1/3.0 |
| No./diameter of AL wire (mm) | 0/3.5 | 12/2.4 | 12/2.6 | 12/2.8 | 12/3.0 |
| No./diameter of ACS wire (mm) | 6/3.5 | 5/2.4 | 5/2.6 | 5/2.8 | 6/3.0 |
| Cable diameter (mm) | 10.5 | 12 | 13 | 14 | 15 |
| RTS (KN) | 75 | 45 | 53 | 64 | 80 |
| Cable weight (kg) | 415 | 320 | 374 | 432 | 527 |
| DC resistance (20℃ W/km) | 1.36 | 0.524 | 0.448 | 0.386 | 0.327 |
| Modulus of elasticity (Gpa) | 162 | 96.1 | 95.9 | 95.6 | 97.8 |
| Short circuit capacity (kA²s) | 24 | 57.3 | 78.9 | 105.8 | 150.4 |
| Max. operation temperature (℃) | 200 | 200 | 200 | 200 | 200 |
| Max. fiber count | 48 | 32 | 48 | 52 | 30 |
| Contact us for more details | |||||
Fiber details (G652D):
| Characteristics | Specified Values | Units | ||
| Mode field diameter | at 1310nm | 9.2±0.4 | µm | |
| at 1550nm | 10.4±0.6 | µm | ||
| Attenuation coefficient | at 1310nm | ≤0.40 | dB/km | |
| at 1550nm | ≤0.30 | dB/km | ||
| Zero dispersion wavelength ( λ0) | 1300 to 1324 | nm | ||
| Max zero dispersion slope (S0max) | ≤0.092 | ps/(nm2·km) | ||
| Cut-off wavelength (λcc) | ≤1260 | nm | ||
| Cladding diameter | 125.0±1.0 | µm | ||
| Cladding non-circularity | ≤1.0 | % | ||
| Coating diameter | 245.0±10.0 | µm | ||
| Coating-cladding concentricity error | ≤12.0 | µm | ||
| Coating non-circularity | ≤6.0 | % | ||
| Core-cladding concentricity error | ≤0.8 | µm | ||
| Curling | ≥4 | m | ||
| Proof stress | ≥0.69 | GPa | ||
| Coating strip force | Average value | 1.0-5.0 | N | |
| Peak value | 1.3-8.9 | N | ||
| Macro bending loss | Ф60mm, 100 circles | at 1550nm | ≤0.05 | dB |
| Ф32mm, 1 circles | at 1550nm | ≤0.05 | dB | |
Drum length
According to your requirements
Fiber color: (Support customized color)
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Blue | Orange | Green | Brown | Gray | White | Red | Black | Yellow | Purple | Pink | Aqua |
Remark:
Detail requirements need to be sent to us for cable design and price calculation. Below requirements are a must:
A, Power transmission line voltage level
B, fiber count
C, Cable structure drawing & diameter
D, Tensile strength
F, Short circuit capacity
