Product Details
Place of Origin: CHINA
Brand Name: HYOC
Certification: ISO9001
Model Number: MINI-2G652D
Payment & Shipping Terms
Minimum Order Quantity: 10KM
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 15 days
Payment Terms: T/T and L/C
Supply Ability: 5000KM/MONTH
Fiber Type: |
G652D, G657A1 Or Multimode |
Operating Temperature: |
-20～＋50℃ |
Cable Diameter: |
2.0mm-2.5mm |
Installation Temperature: |
-10～＋40℃ |
Thickness Of HDPE Sheath: |
0.2mm |
Cable Service Life: |
25 Years |
Max. Crushing Force: |
600N/100mm |
Jacket Color: |
Normally Green, Customization Supported |
Fiber Type: |
G652D, G657A1 Or Multimode |
Operating Temperature: |
-20～＋50℃ |
Cable Diameter: |
2.0mm-2.5mm |
Installation Temperature: |
-10～＋40℃ |
Thickness Of HDPE Sheath: |
0.2mm |
Cable Service Life: |
25 Years |
Max. Crushing Force: |
600N/100mm |
Jacket Color: |
Normally Green, Customization Supported |

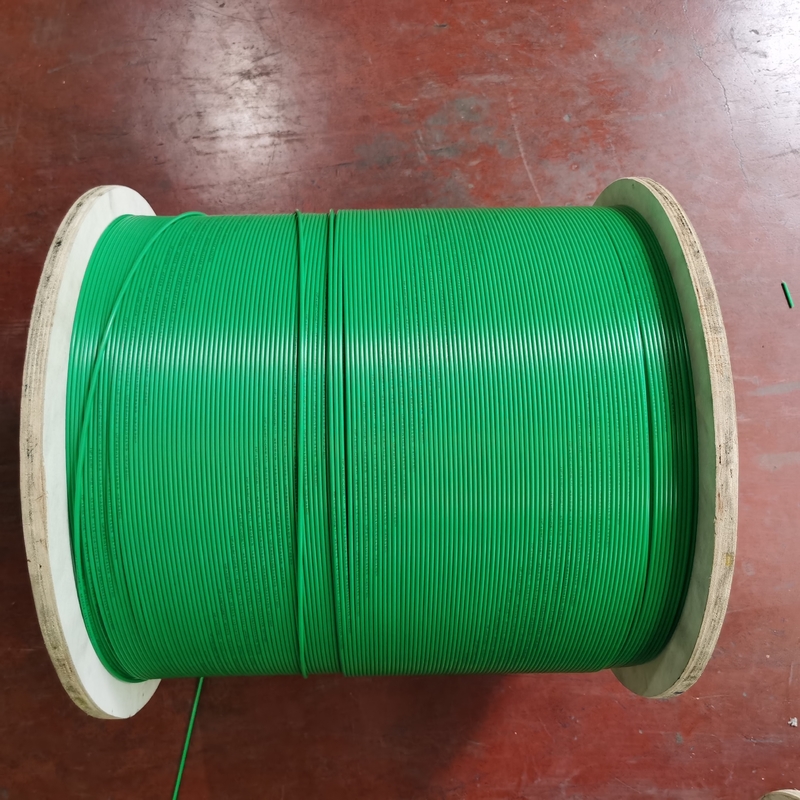

FTTH Fiber Optic Cable is an air blowing fiber cable, an air blown fiber cable, and an air blown fiber cable system designed for long-term use over 25 years. It is commonly seen with a green jacket but customization is also supported. With a storage temperature range of -30～＋50℃, FTTH Fiber Optic Cable is suitable for a variety of environments. The outer diameter of the cable is 5/3.5mm and the minimum bending radius for static and dynamic usage is 10/20 Outer Φ respectively.
| Property | Value |
|---|---|
| Min. Bending radius -Static / Dynamic | 10 / 20 Outer Φ |
| Attenuation @1310nm | Max 0.35dB/km |
| Thickness of HDPE sheath | 0.2mm |
| Max. Crushing force | 600N/100mm |
| Jacket Color | Normally Green, Customization Supported |
| Installation Temperature | -10～＋40℃ |
| Cable Diameter | 2.0mm-2.5mm |
| Fiber Type | G652D, G657A1 Or Multimode |
| Cable Length | 4km Or 6km Per Drum |
| Max. Tensile Strength | 40N To 60N |
HYOC MINI-2G652D FTTH Fiber Optic Cable is an advanced air blown microduct cable, which features a cable diameter of 2.0mm-2.5mm and a blowing distance of up to 800m. Certified to ISO9001, this fiber optic cable is packaged in wooden drums, and has a minimum order quantity of 10KM. The cable jacket color is normally green, but customization is supported. It has a thickness of HDPE sheath of 0.2mm and a weight of 4.0 To 7.0 Kg/km. Prices are negotiable, and the delivery time is 15 days. Payment can be done via T/T and L/C. With a supply ability of 5000KM/MONTH, HYOC MINI-2G652D FTTH Fiber Optic Cable is the perfect choice for your FTTH needs.
We provide comprehensive technical support and services for FTTH Fiber Optic Cable. Our services include installation, maintenance, troubleshooting, and repair of FTTH Fiber Optic Cable products.
We also provide technical advice on the best FTTH Fiber Optic Cable products for your application. Our team of experienced technicians can answer any questions you may have regarding the installation, maintenance, troubleshooting, and repair of FTTH Fiber Optic Cable products.
We offer on-site technical support and services for FTTH Fiber Optic Cable, as well as remote technical support and services. Our technicians are available 24/7 to assist you with any questions or issues you may have with your FTTH Fiber Optic Cable products.
For more information on our FTTH Fiber Optic Cable Technical Support and Services, please contact us today.
FTTH Fiber Optic Cable Packaging and Shipping:
FTTH Fiber Optic Cable should be safely and securely packaged to ensure that it is not damaged during shipping. The package should include the following items:
The package should be shipped to the customer using an appropriate shipping method, such as air freight or ground transportation. The package should be labeled clearly with the customer's name and address, and the package should include tracking information for the customer to use to track the package.
