Product Name: |
24 Fiber G657A1 Blown In Fiber Optic Cable FTTH Fiber Optic Cable Fiber Wires |
Fiber Count: |
24F |
Fiber Type: |
G.657.A1 |
Cable Diameter: |
2.8mm±0.05mm |
Outer Sheath: |
High Density Polyethylene |
Sheath Color: |
Green Or Customerized |
Type Of Installation: |
Air Jetting |
Storage Temperature: |
-30℃ To +50℃ |
Product Name: |
24 Fiber G657A1 Blown In Fiber Optic Cable FTTH Fiber Optic Cable Fiber Wires |
Fiber Count: |
24F |
Fiber Type: |
G.657.A1 |
Cable Diameter: |
2.8mm±0.05mm |
Outer Sheath: |
High Density Polyethylene |
Sheath Color: |
Green Or Customerized |
Type Of Installation: |
Air Jetting |
Storage Temperature: |
-30℃ To +50℃ |
24 Fiber G657A1 Blown In Fiber Optic Cable FTTH Fiber Optic Cable Fiber Wires
Applications
The FTTH fiber optic cable can be used as the drop cable of distribution segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks, metropolitan area networks and access networks.
Technical specification:
| Cable P/N | MINI-24-2.8 |
| Number of fibre | 24 |
| Jacket thickness | Nominal value: 0.20mm |
| Cable diameter | 2.8±0.1mm |
| Cable weight | 7.0kg/km |
| Min. Bending radius Static / Dynamic |
10 / 20 x cable diameter |
| Storage temperature | -30 to +50℃ |
| Installation temperature | -10 to +40℃ |
| Operation temperature | -20 to +50℃ |
| Cable life | 25 years |
Fiber specification:
| Single mode fiber | 9/125um OS2 G.657A1 |
| Chromatic dispersion | |
| @1285-1330nm ps/(nm.km) | - |
| @1550nm ps/(nm.km) | - |
| Attenuation - cable | |
| Max. @1310nm (dB/km) | 0.35 |
| Max. @1550nm (dB/km) | 0.24 |
| Max. @1625nm (dB/km) | 0.26 |
| Cable cut-off wavelength (λcc) (um) | ≤1260 |
| Mode field diameter | |
| @1310nm (um) | 8.6-9.3 |
| @1550nm (um) | 9.5-10.5 |
| Cladding diameter | 125.0±0.7 |
| Clad non-circularity | ≤1% |
| Coating diamter (um) | 235-245 |
| Core/clad concentricity error (um) | ≤0.5 |
| Coating/clad concentricity error (um) | ≤12 |
| Zero dispersion wavelength (λ0) (nm) | 1302-1322 |
| Group refractive index | |
| @1310nm | 1.467 |
| @1550nm | 1.468 |
Cable structure:

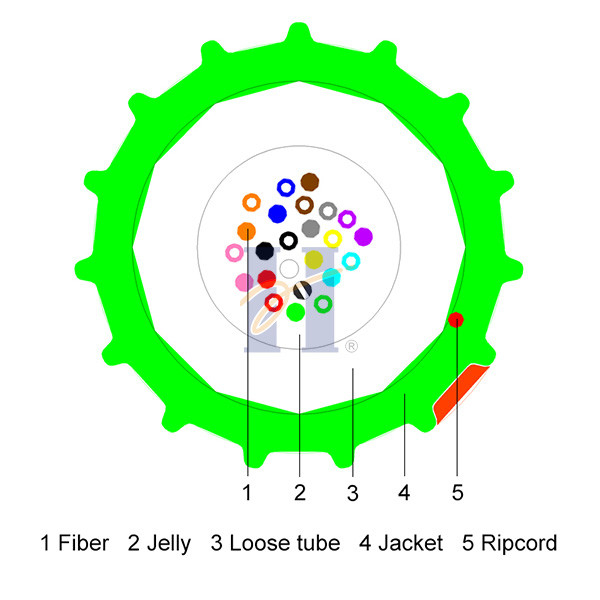

1. HDPE sheath 2. Fiber 3. Jelly 4. Loose tube 5. Ripcord
Mechanical and Environmental Characteristics
| Item | Testing Method | Testing Results | Specified Value | |
| Tension performance | IEC 60794-1-21-E1 | Optical fibre strain | Additional attenuation | Max. Tensile Strength = Short term allowable tension≈2× (Long term allowable tension) |
| Short term:≤0.3％ Long term:≤0.1％ |
Short term: Δa<0.1dB, Δa reversible Long term: Δa≤0.03 dB |
|||
| Crush | IEC 60794-1-21-E3 | Short term: Δa<0.1dB, Δa reversible Long term: Δa≤0.03 dB The outer sheath has no visible crack. |
Short term crushing force = 600N Long term crushing force = 300N |
|
| Cable bend | IEC 60794-1-21-E11A | After test, the optical fibre doesn't break The outer sheath has no visible crack. |
R: 20 x cable diameter |
|
| All optical testing proceeded at 1550 nm | ||||
Standard drum length
2000m/drum, 4000m/drum & 6000m/drum
Fiber color: (Support customized color)
| 1 Blue | 13 Blue |
| 2 Orange | 14 Orange |
| 3 Green | 15 Green |
| 4 Brown | 16 Brown |
| 5 Grey | 17 Grey |
| 6 White | 18 White |
| 7 Red | 19 Red |
| 8 Black | 20 Black |
| 9 Yellow | 21 Yellow |
| 10 Violet | 22 Violet |
| 11 Pink | 23 Pink |
| 12 Aqua | 24 Aqua |
Cable text print: (Support customized text)
HUIYUAN GCYFXTY 24 G652D [Drum No.] [Month-Year] [Meter marking]
Order information
| Number of fibres | Fibre class | Part name |
| 24 | G657A1 | GCYFXTY 1X24 G657A1 2.80MM |
| 24 | G652D | GCYFXTY 1X24 G652D 2.80MM |
| 24 | OM1 | GCYFXTY 1X24 OM1 2.80MM |
| 24 | OM2 | GCYFXTY 1X24 OM2 2.80MM |
| 24 | OM3 | GCYFXTY 1X24 OM3 2.80MM |
| 24 | OM4 | GCYFXTY 1X24 OM4 2.80MM |
